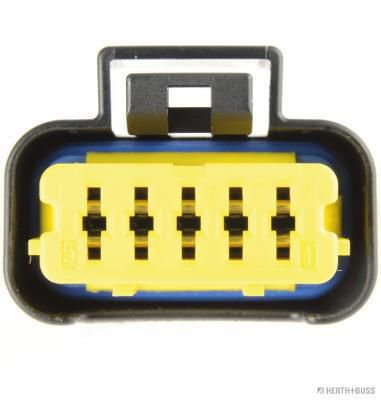

Cable Repair Set, EGR valve, HERTH+BUSS ELPARTS 51277303
- Delivery from 18/06
- Article number: 51277303
- Supplier name: HERTH+BUSS ELPARTS
- Description: Cable Repair Set, EGR valve
27.71 EUR (incl. VAT)
| Manufacturer Restriction | Citroen |
| Manufacturer Restriction | Fiat |
| Manufacturer Restriction | Peugeot |
| Manufacturer Restriction | Renault |
| Number of pins | 5 -pin connector |
| Cable Length [mm] | 200 mm |
| Supplementary Article/Supplementary Info | with socket housing |
| Supplementary Article/Info 2 | with pipe |
| Supplementary Article/Supplementary Info | with gaskets/seals |
| Cable Cross Section [mm²] | 0,75 mm² |
| Temperature range from [°C] | -25 °C |
| Temperature range to [°C] | +140 °C |
| Cable insulation material | Silicone |
| Plug housing design | Plug sleeve housing |
| SVHC | No SVHC present! |
| TOYOTA | 13505-0L010 |
| TOYOTA | 13505-67040 |
| TOYOTA | 13505-67041 |
| TOYOTA | 13505-67042 |
| BERLINGO (B9) 07/2010 - | ||||
| Motor codes | Engine type | HP | kW | Type |
| 9HT (DV6BTED4) | Diesel | 75 | 55 | 1.6 HDi 75 16V |
| 9HX (DV6ATED4) | Diesel | 90 | 66 | 1.6 HDi 90 |
| 9HZ (DV6TED4) | Diesel | 109 | 80 | 1.6 HDi 110 |
| 9HF (DV6DTED) | Diesel | 90 | 66 | 1.6 HDi 90 4x4 |
| BERLINGO / BERLINGO FIRST Box (M_) 10/2000 - 03/2008 | ||||
| Motor codes | Engine type | HP | kW | Type |
| 9HW (DV6BTED4), DV6B | Diesel | 75 | 55 | 1.6 HDI 75 (MB9HW) |
| 9HX (DV6ATED4) | Diesel | 90 | 66 | 1.6 HDI 90 (MB9HX, MC9HX) |
| BERLINGO / BERLINGO FIRST MPV (MF) 10/2000 - 12/2011 | ||||
| Motor codes | Engine type | HP | kW | Type |
| 9HW (DV6BTED4), DV6B | Diesel | 75 | 55 | 1.6 HDI 75 (MF9HW) |
| 9HX (DV6ATED4) | Diesel | 90 | 66 | 1.6 HDI 90 (MF9HX) |
| BERLINGO Box (B9) 07/2010 - | ||||
| Motor codes | Engine type | HP | kW | Type |
| 9HT (DV6BTED4), 9HT (DV6BUTED4) | Diesel | 75 | 55 | 1.6 HDi 75 |
| 9HS (DV6TED4BU), 9HX (DV6AUTED4) | Diesel | 90 | 66 | 1.6 HDi 90 16V |
| 9HZ (DV6TED4) | Diesel | 109 | 80 | 1.6 HDi 110 |
| BERLINGO Platform/Chassis (B9) 04/2008 - | ||||
| Motor codes | Engine type | HP | kW | Type |
| 9HX (DV6ATED4) | Diesel | 90 | 66 | 1.6 HDi 90 16V |
| C2 (JM_) 06/2006 - | ||||
| Motor codes | Engine type | HP | kW | Type |
| 9HZ (DV6TED4) | Diesel | 109 | 80 | 1.6 HDi |
| C3 I (FC_, FN_) 12/2003 - | ||||
| Motor codes | Engine type | HP | kW | Type |
| 9HZ (DV6TED4) | Diesel | 109 | 80 | 1.6 16V HDi |
| 9HX (DV6ATED4) | Diesel | 90 | 66 | 1.6 16V HDi |
| C3 II (SC_) 01/2010 - 04/2014 | ||||
| Motor codes | Engine type | HP | kW | Type |
| 9HX (DV6ATED4) | Diesel | 90 | 66 | 1.6 HDi 90 |
| C3 Picasso 02/2009 - | ||||
| Motor codes | Engine type | HP | kW | Type |
| 9HZ (DV6TED4) | Diesel | 109 | 80 | 1.6 HDi |
| 9HX (DV6ATED4) | Diesel | 90 | 66 | 1.6 HDi |
| C4 Coupe (LA_) 11/2004 - 07/2011 | ||||
| Motor codes | Engine type | HP | kW | Type |
| 9HX (DV6ATED4) | Diesel | 90 | 66 | 1.6 HDi |
| 9HY (DV6TED4), 9HZ (DV6TED4) | Diesel | 109 | 80 | 1.6 HDi |
| C4 Grand Picasso I (UA_) 07/2008 - | ||||
| Motor codes | Engine type | HP | kW | Type |
| 9HY (DV6TED4), 9HZ (DV6TED4) | Diesel | 109 | 80 | 1.6 HDi |
| C4 I (LC_) 11/2004 - 07/2011 | ||||
| Motor codes | Engine type | HP | kW | Type |
| 9HX (DV6ATED4) | Diesel | 90 | 66 | 1.6 HDi |
| 9HY (DV6TED4), 9HZ (DV6TED4) | Diesel | 109 | 80 | 1.6 HDi |
| C4 Picasso I MPV (UD_) 07/2008 - 08/2013 | ||||
| Motor codes | Engine type | HP | kW | Type |
| 9HY (DV6TED4), 9HZ (DV6TED4) | Diesel | 109 | 80 | 1.6 HDi |
| C4 Saloon 07/2006 - 07/2011 | ||||
| Motor codes | Engine type | HP | kW | Type |
| 9HY (DV6TED4), 9HZ (DV6TED4) | Diesel | 109 | 80 | 1.6 HDi |
| C5 II (RC_) 09/2004 - | ||||
| Motor codes | Engine type | HP | kW | Type |
| 9HY (DV6TED4), 9HZ (DV6TED4) | Diesel | 109 | 80 | 1.6 HDi (RC8HZB) |
| C5 II Break (RE_) 09/2004 - | ||||
| Motor codes | Engine type | HP | kW | Type |
| 9HY (DV6TED4), 9HZ (DV6TED4) | Diesel | 109 | 80 | 1.6 HDi (RE8HZB) |
| C5 III (RD_) 07/2010 - | ||||
| Motor codes | Engine type | HP | kW | Type |
| 9HZ (DV6TED4) | Diesel | 109 | 80 | 1.6 HDi 110 |
| C5 III Break (RW_) 07/2010 - | ||||
| Motor codes | Engine type | HP | kW | Type |
| 9HZ (DV6TED4) | Diesel | 109 | 80 | 1.6 HDi 110 |
| XSARA PICASSO (N68) 02/2000 - | ||||
| Motor codes | Engine type | HP | kW | Type |
| 9HY (DV6TED4), 9HZ (DV6TED4) | Diesel | 109 | 80 | 1.6 HDi |
| 9HX (DV6ATED4) | Diesel | 90 | 66 | 1.6 HDi |
| SCUDO (270_, 272_) 01/2007 - | ||||
| Motor codes | Engine type | HP | kW | Type |
| 9H07 (DV6UC), 9HM (DV6UC) | Diesel | 90 | 66 | 1.6 D Multijet |
| SCUDO Box (270_, 272_) 01/2007 - | ||||
| Motor codes | Engine type | HP | kW | Type |
| 9H07 (DV6UC), 9HM (DV6UC) | Diesel | 90 | 66 | 1.6 D Multijet |
| 1007 (KM_) 10/2005 - | ||||
| Motor codes | Engine type | HP | kW | Type |
| 9HZ (DV6TED4) | Diesel | 109 | 80 | 1.6 HDi |
| 206 CC (2D) 09/2000 - | ||||
| Motor codes | Engine type | HP | kW | Type |
| 9HZ (DV6TED4) | Diesel | 109 | 80 | 1.6 HDi 110 |
| 206 Hatchback (2A/C) 10/2003 - | ||||
| Motor codes | Engine type | HP | kW | Type |
| 9HY (DV6TED4), 9HZ (DV6TED4) | Diesel | 109 | 80 | 1.6 HDi 110 |
| 206 SW (2E/K) 10/2003 - | ||||
| Motor codes | Engine type | HP | kW | Type |
| 9HZ (DV6TED4) | Diesel | 109 | 80 | 1.6 HDi 110 |
| 207 (WA_, WC_) 06/2007 - | ||||
| Motor codes | Engine type | HP | kW | Type |
| 9HX (DV6ATED4) | Diesel | 90 | 66 | 1.6 HDi |
| 9HY (DV6TED4), 9HZ (DV6TED4) | Diesel | 109 | 80 | 1.6 HDi |
| 207 CC (WD_) 02/2007 - | ||||
| Motor codes | Engine type | HP | kW | Type |
| 9HZ (DV6TED4) | Diesel | 109 | 80 | 1.6 HDi |
| 207 SW (WK_) 06/2007 - | ||||
| Motor codes | Engine type | HP | kW | Type |
| 9HV (DV6TED4), 9HX (DV6ATED4) | Diesel | 90 | 66 | 1.6 HDi |
| 9HZ (DV6TED4) | Diesel | 109 | 80 | 1.6 HDi |
| 207 Van 04/2007 - | ||||
| Motor codes | Engine type | HP | kW | Type |
| 9HV (DV6TED4), 9HX (DV6ATED4) | Diesel | 90 | 66 | 1.6 HDi |
| 3008 MPV (0U_) 06/2009 - | ||||
| Motor codes | Engine type | HP | kW | Type |
| 9HZ (DV6TED4) | Diesel | 109 | 80 | 1.6 HDi |
| 307 (3A/C) 04/2005 - | ||||
| Motor codes | Engine type | HP | kW | Type |
| 9HY (DV6TED4), 9HZ (DV6TED4) | Diesel | 109 | 80 | 1.6 HDi 110 |
| 9HV (DV6ATED4), 9HV (DV6TED4), 9HX (DV6ATED4) | Diesel | 90 | 66 | 1.6 HDi |
| 307 Break (3E) 04/2005 - 04/2008 | ||||
| Motor codes | Engine type | HP | kW | Type |
| 9HY (DV6TED4), 9HZ (DV6TED4) | Diesel | 109 | 80 | 1.6 HDi 110 |
| 9HV (DV6ATED4) | Diesel | 90 | 66 | 1.6 HDi |
| 307 SW (3H) 11/2003 - 07/2007 | ||||
| Motor codes | Engine type | HP | kW | Type |
| 9HY (DV6TED4), 9HZ (DV6TED4) | Diesel | 109 | 80 | 1.6 HDI 110 |
| 9HV (DV6ATED4), 9HV (DV6TED4B), 9HV (DV6TED4BU), 9HX (DV6ATED4), 9HX (DV6AUTED4) | Diesel | 90 | 66 | 1.6 HDI 90 |
| 308 (4A_, 4C_) 09/2007 - | ||||
| Motor codes | Engine type | HP | kW | Type |
| 9HV (DV6TED4), 9HX (DV6ATED4) | Diesel | 90 | 66 | 1.6 HDi |
| 9HZ (DV6TED4) | Diesel | 109 | 80 | 1.6 HDi |
| 308 SW (4E_, 4H_) 12/2009 - | ||||
| Motor codes | Engine type | HP | kW | Type |
| 9HV (DV6ATED4), 9HX (DV6ATED4) | Diesel | 90 | 66 | 1.6 HDi |
| 9HZ (DV6TED4) | Diesel | 109 | 80 | 1.6 HDi |
| 407 (6D_) 05/2004 - | ||||
| Motor codes | Engine type | HP | kW | Type |
| 9HZ (DV6TED4) | Diesel | 109 | 80 | 1.6 HDi 110 |
| 407 SW (6E_) 05/2004 - | ||||
| Motor codes | Engine type | HP | kW | Type |
| 9HZ (DV6TED4) | Diesel | 109 | 80 | 1.6 HDi 110 |
| 5008 09/2009 - | ||||
| Motor codes | Engine type | HP | kW | Type |
| 9HZ (DV6TED4) | Diesel | 110 | 80 | 1.6 HDi |
| EXPERT Box (VF3A_, VF3U_, VF3X_) 01/2007 - | ||||
| Motor codes | Engine type | HP | kW | Type |
| 9HU (DV6UTED4) | Diesel | 90 | 66 | 1.6 HDi 90 16V |
| EXPERT Tepee (VF3V_) 01/2007 - | ||||
| Motor codes | Engine type | HP | kW | Type |
| 9HU (DV6UTED4) | Diesel | 90 | 66 | 1.6 HDi 90 16V |
| PARTNER Box (5) 06/1996 - 09/2005 | ||||
| Motor codes | Engine type | HP | kW | Type |
| 9HW (DV6BTED4) | Diesel | 75 | 55 | 1.6 HDi 75 |
| 9HX (DV6ATED4) | Diesel | 90 | 66 | 1.6 HDi 90 |
| PARTNER Box 11/2010 - | ||||
| Motor codes | Engine type | HP | kW | Type |
| 9HT (DV6BTED4), 9HW (DV6BTED4) | Diesel | 75 | 55 | 1.6 HDi |
| 9HS (DV6TED4BU), 9HX (DV6AUTED4) | Diesel | 90 | 66 | 1.6 HDi 16V |
| 9HZ (DV6TED4) | Diesel | 109 | 80 | 1.6 HDi |
| 9HJ (DV6DTEDM), 9HX (DV6ATED4) | Diesel | 92 | 68 | 1.6 HDi 16V |
| PARTNER Combispace (5F) 07/2001 - 03/2008 | ||||
| Motor codes | Engine type | HP | kW | Type |
| 9HX (DV6ATED4) | Diesel | 90 | 66 | 1.6 HDi 90 |
| 9HW (DV6BTED4) | Diesel | 75 | 55 | 1.6 HDi 75 |
| PARTNER Platform/Chassis 01/2009 - | ||||
| Motor codes | Engine type | HP | kW | Type |
| 9HT (DV6BTED4) | Diesel | 75 | 55 | 1.6 HDi |
| 9HS (DV6TED4BU), 9HX (DV6ATED4) | Diesel | 90 | 66 | 1.6 HDi 16V |
| PARTNER Tepee 08/2010 - | ||||
| Motor codes | Engine type | HP | kW | Type |
| 9HV (DV6TED4), 9HX (DV6ATED4) | Diesel | 90 | 66 | 1.6 HDi 16V |
| 9HZ (DV6TED4) | Diesel | 109 | 80 | 1.6 HDi |
| SX4 (EY, GY) 06/2006 - 07/2010 | ||||
| Motor codes | Engine type | HP | kW | Type |
| 9HX | Diesel | 90 | 66 | 1.6 DDIS (RW 416D) |
