Alternator, BOSCH 0 986 046 240
- Delivery from 19/09
- Article number: 0 986 046 240
- Supplier name: BOSCH
- Description: Alternator
222.26 EUR (incl. VAT)

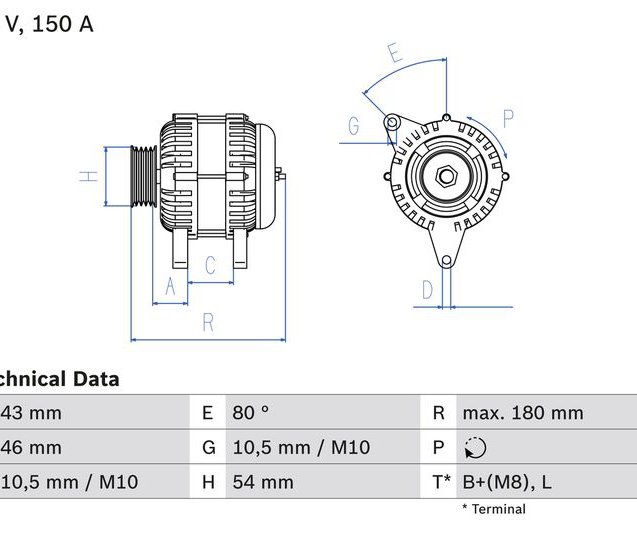

| Voltage [V] | 14 V |
| Alternator Charge Current [A] | 150 A |
| Fastening Type | Double Pivot Lever |
| Alternator type | excl. vacuum pump |
| Distance from belt pulley to alternator [mm] | 42,6 mm |
| Rotation Direction | Clockwise rotation |
| Pulleys | with freewheel belt pulley |
| Number of grooves | 6 |
| Belt Pulley Ø [mm] | 54,3 mm |
| Clamp | L |
| Clamp | B+(M8) |

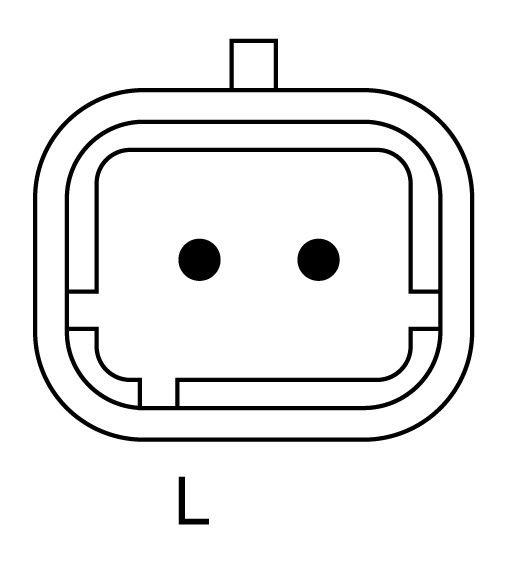

| Plug Type ID | PL324 |
| Length [mm] | 180 mm |
| Recommended additional repairs | V-Belt/V-Ribbed Belt |
| CITROËN | 5702 C2 |
| CITROËN | 5702 E1 |
| CITROËN | 5702 E2 |
| CITROËN | 5702 E3 |
| CITROËN | 5705 AG |
| CITROËN | 5705 AR |
| CITROËN | 5705 AS |
| CITROËN | 5705 EX |
| CITROËN | 5705 EY |
| CITROËN | 5705 NH |
| CITROËN | 96 463 218 |
| FIAT | K9644037180 |
| FIAT | K9644103580 |
| FIAT | K9646065480 |
| FIAT | K9646321780 |
| FIAT | K9646321880 |
| FIAT | K9650358580 |
| FIAT | 71732307 |
| FIAT | 71733552 |
| FIAT | 9644 037 180 |
| FIAT | 9644 103 580 |
| FIAT | 9646 065 480 |
| FIAT | 9646 321 780 |
| FIAT | 9646 321 880 |
| FIAT | 9650 358 580 |
| LANCIA | K9646065480 |
| LANCIA | 9646065480 |
| PEUGEOT | 5702 C2 |
| PEUGEOT | 5702 E1 |
| PEUGEOT | 5702 E2 |
| PEUGEOT | 5702 E3 |
| PEUGEOT | 5705 AG |
| PEUGEOT | 5705 AR |
| PEUGEOT | 5705 AS |
| PEUGEOT | 5705 EX |
| PEUGEOT | 5705 EY |
| PEUGEOT | 5705 NH |
| PEUGEOT | 96 463 218 |
| BERLINGO (B9) 07/2010 - | ||||
| Motor codes | Engine type | HP | kW | Type |
| 9HT (DV6BTED4) | Diesel | 75 | 55 | 1.6 HDi 75 16V |
| 9HX (DV6ATED4) | Diesel | 90 | 66 | 1.6 HDi 90 |
| 9HZ (DV6TED4) | Diesel | 109 | 80 | 1.6 HDi 110 |
| BERLINGO / BERLINGO FIRST Box (M_) 10/2000 - 03/2008 | ||||
| Motor codes | Engine type | HP | kW | Type |
| WJY (DW8B), WJZ (DW8) | Diesel | 69 | 51 | 1.9 D 70 (MBWJZ, MCWJZ) |
| WJY (DW8B), WJZ (DW8) | Diesel | 69 | 51 | 1.9 D 70 4WD (MBWJZ, MCWJZ) |
| RHY (DW10TD) | Diesel | 90 | 66 | 2.0 HDI 90 (MBRHY, MCRHY) |
| RHY (DW10TD) | Diesel | 90 | 66 | 2.0 HDI 90 4WD (MBRHY, MCRHY) |
| 9HW (DV6BTED4), DV6B | Diesel | 75 | 55 | 1.6 HDI 75 (MB9HW) |
| 9HX (DV6ATED4) | Diesel | 90 | 66 | 1.6 HDI 90 (MB9HX, MC9HX) |
| 9HJ (DV6DTEDM), 9HP (DV6DTED) | Diesel | 92 | 68 | 1.6 HDI 92 |
| BERLINGO / BERLINGO FIRST MPV (MF) 10/2000 - 12/2011 | ||||
| Motor codes | Engine type | HP | kW | Type |
| WJY (DW8B), WJZ (DW8) | Diesel | 70 | 51 | 1.9 D (MFWJZ) |
| RHY (DW10TD) | Diesel | 90 | 66 | 2.0 HDI 90 (MFRHY) |
| WJY (DW8B), WJZ (DW8) | Diesel | 69 | 51 | 1.9 D 4WD (MFWJZ) |
| 9HW (DV6BTED4), DV6B | Diesel | 75 | 55 | 1.6 HDI 75 (MF9HW) |
| 9HX (DV6ATED4) | Diesel | 90 | 66 | 1.6 HDI 90 (MF9HX) |
| RHY (DW10TD) | Diesel | 90 | 66 | 2.0 HDi 4x4 (MFRHY) |
| 9HJ (DV6DTEDM), 9HP (DV6DTED) | Diesel | 92 | 68 | 1.6 HDI 92 |
| BERLINGO Box (B9) 07/2010 - | ||||
| Motor codes | Engine type | HP | kW | Type |
| 9HT (DV6BTED4), 9HT (DV6BUTED4) | Diesel | 75 | 55 | 1.6 HDi 75 |
| 9HS (DV6TED4BU), 9HX (DV6AUTED4) | Diesel | 90 | 66 | 1.6 HDi 90 16V |
| 9HZ (DV6TED4) | Diesel | 109 | 80 | 1.6 HDi 110 |
| BERLINGO Platform/Chassis (B9) 04/2008 - | ||||
| Motor codes | Engine type | HP | kW | Type |
| 9HX (DV6ATED4) | Diesel | 90 | 66 | 1.6 HDi 90 16V |
| C2 (JM_) 06/2006 - | ||||
| Motor codes | Engine type | HP | kW | Type |
| 8HX (DV4TD), 8HZ (DV4TD) | Diesel | 68 | 50 | 1.4 HDi |
| 9HZ (DV6TED4) | Diesel | 109 | 80 | 1.6 HDi |
| C2 ENTERPRISE (JG_) 04/2009 - | ||||
| Motor codes | Engine type | HP | kW | Type |
| 8HX (DV4TD) | Diesel | 68 | 50 | 1.4 HDi |
| C3 I (FC_, FN_) 12/2003 - | ||||
| Motor codes | Engine type | HP | kW | Type |
| 8HZ (DV4TD) | Diesel | 70 | 52 | 1.4 HDi |
| 8HX (DV4TD), 8HZ (DV4TD) | Diesel | 68 | 50 | 1.4 HDi |
| 9HZ (DV6TED4) | Diesel | 109 | 80 | 1.6 16V HDi |
| 9HX (DV6ATED4) | Diesel | 90 | 66 | 1.6 16V HDi |
| C3 II (SC_) 01/2010 - 04/2014 | ||||
| Motor codes | Engine type | HP | kW | Type |
| 9HX (DV6ATED4) | Diesel | 90 | 66 | 1.6 HDi 90 |
| 8HR (DV4C), 8HZ (DV4TD) | Diesel | 68 | 50 | 1.4 HDi 70 |
| C3 Picasso 02/2009 - | ||||
| Motor codes | Engine type | HP | kW | Type |
| 9HZ (DV6TED4) | Diesel | 109 | 80 | 1.6 HDi |
| 9HX (DV6ATED4) | Diesel | 90 | 66 | 1.6 HDi |
| C3 Pluriel (HB_) 05/2003 - | ||||
| Motor codes | Engine type | HP | kW | Type |
| 8HX (DV4TD) | Diesel | 68 | 50 | 1.4 HDi |
| C4 Coupe (LA_) 11/2004 - 07/2011 | ||||
| Motor codes | Engine type | HP | kW | Type |
| 9HX (DV6ATED4) | Diesel | 90 | 66 | 1.6 HDi |
| 9HY (DV6TED4), 9HZ (DV6TED4) | Diesel | 109 | 80 | 1.6 HDi |
| RHR (DW10BTED4) | Diesel | 136 | 100 | 2.0 HDi |
| RHF (DW10BTED4) | Diesel | 140 | 103 | 2.0 HDi |
| C4 Grand Picasso I (UA_) 07/2008 - | ||||
| Motor codes | Engine type | HP | kW | Type |
| 9HY (DV6TED4), 9HZ (DV6TED4) | Diesel | 109 | 80 | 1.6 HDi |
| RHJ (DW10BTED4), RHR (DW10BTED4) | Diesel | 136 | 100 | 2.0 HDi 138 |
| C4 I (LC_) 11/2004 - 07/2011 | ||||
| Motor codes | Engine type | HP | kW | Type |
| 9HX (DV6ATED4) | Diesel | 90 | 66 | 1.6 HDi |
| 9HY (DV6TED4), 9HZ (DV6TED4) | Diesel | 109 | 80 | 1.6 HDi |
| RHR (DW10BTED4) | Diesel | 136 | 100 | 2.0 HDi |
| RHF (DW10BTED4) | Diesel | 140 | 103 | 2.0 HDi |
| RHZ (DW10ATED) | Diesel | 110 | 81 | 2.0 HDi |
| C4 I Hatchback Van (LR_) 02/2005 - 12/2010 | ||||
| Motor codes | Engine type | HP | kW | Type |
| RHR (DW10BTED4) | Diesel | 136 | 100 | 2.0 HDi |
| C4 Picasso I MPV (UD_) 07/2008 - 08/2013 | ||||
| Motor codes | Engine type | HP | kW | Type |
| 9HY (DV6TED4), 9HZ (DV6TED4) | Diesel | 109 | 80 | 1.6 HDi |
| RHJ (DW10BTED4), RHR (DW10BTED4) | Diesel | 136 | 100 | 2.0 HDi 138 |
| C4 Saloon 07/2006 - 07/2011 | ||||
| Motor codes | Engine type | HP | kW | Type |
| 9HY (DV6TED4), 9HZ (DV6TED4) | Diesel | 109 | 80 | 1.6 HDi |
| C5 I (DC_) 03/2001 - 08/2004 | ||||
| Motor codes | Engine type | HP | kW | Type |
| RHZ (DW10ATED) | Diesel | 109 | 80 | 2.0 HDi (DCRHZB, DCRHZE) |
| 4HX (DW12TED4/FAP) | Diesel | 133 | 98 | 2.2 HDi (DC4HXB, DC4HXE) |
| RHY (DW10TD) | Diesel | 90 | 66 | 2.0 HDi (DCRHYB) |
| RHS (DW10ATED), RHZ (DW10ATED) | Diesel | 107 | 79 | 2.0 HDi |
| C5 I Break (DE_) 06/2001 - 08/2004 | ||||
| Motor codes | Engine type | HP | kW | Type |
| RHS (DW10ATED), RHZ (DW10ATED) | Diesel | 107 | 79 | 2.0 HDi (DERHSB, DERHSE) |
| 4HX (DW12TED4/FAP) | Diesel | 133 | 98 | 2.2 HDi (DE4HXB, DE4HXE) |
| RHY (DW10TD) | Diesel | 90 | 66 | 2.0 HDi (DERHYB) |
| RHZ (DW10ATED) | Diesel | 109 | 80 | 2.0 HDi |
| C5 I Estate Van (DE_) 06/2002 - 08/2004 | ||||
| Motor codes | Engine type | HP | kW | Type |
| RHY (DW10TD) | Diesel | 90 | 66 | 2.0 HDi (DERHYB) |
| C5 II (RC_) 09/2004 - | ||||
| Motor codes | Engine type | HP | kW | Type |
| 9HY (DV6TED4), 9HZ (DV6TED4) | Diesel | 109 | 80 | 1.6 HDi (RC8HZB) |
| RHR (DW10BTED4) | Diesel | 136 | 100 | 2.0 HDi (RCRHRH) |
| 4HX (DW12TED4/FAP) | Diesel | 133 | 98 | 2.2 HDi (RC4HXE) |
| C5 II Break (RE_) 09/2004 - | ||||
| Motor codes | Engine type | HP | kW | Type |
| 9HY (DV6TED4), 9HZ (DV6TED4) | Diesel | 109 | 80 | 1.6 HDi (RE8HZB) |
| RHR (DW10BTED4) | Diesel | 136 | 100 | 2.0 HDi (RERHRH) |
| 4HX (DW12TED4/FAP) | Diesel | 133 | 98 | 2.2 HDi (RE4HXE) |
| C5 III (RD_) 07/2010 - | ||||
| Motor codes | Engine type | HP | kW | Type |
| 9HZ (DV6TED4) | Diesel | 109 | 80 | 1.6 HDi 110 |
| RHF (DW10BTED4), RHR (DW10BTED4) | Diesel | 136 | 100 | 2.0 HDi |
| RHF (DW10BTED4) | Diesel | 140 | 103 | 2.0 HDi 140 |
| C5 III Break (RW_) 07/2010 - | ||||
| Motor codes | Engine type | HP | kW | Type |
| 9HZ (DV6TED4) | Diesel | 109 | 80 | 1.6 HDi 110 |
| RHR (DW10BTED4) | Diesel | 136 | 100 | 2.0 HDi |
| RHF (DW10BTED4) | Diesel | 140 | 103 | 2.0 HDi 140 |
| C8 (EA_, EB_) 07/2002 - | ||||
| Motor codes | Engine type | HP | kW | Type |
| RHM (DW10ATED4), RHT (DW10ATED4) | Diesel | 107 | 79 | 2.0 HDi |
| 4HW (DW12TED4) | Diesel | 128 | 94 | 2.2 HDi |
| RHD (DW10CB), RHD (DW10CTED4), RHR (DW10BTED4) | Diesel | 136 | 100 | 2.0 HDi 135 |
| RHK (DW10UTED4) | Diesel | 120 | 88 | 2.0 HDi |
| 4HT (DW12BTED4) | Diesel | 170 | 125 | 2.2 HDi |
| 4HP (DW12BTED4), 4HR (DW12BTED4) | Diesel | 163 | 120 | 2.2 HDi |
| RHW (DW10ATED4) | Diesel | 109 | 80 | 2.0 HDi |
| RHT (DW10ATED4) | Diesel | 110 | 81 | 2.0 HDi |
| C8 Van (EA_, EB_) 11/2003 - 11/2004 | ||||
| Motor codes | Engine type | HP | kW | Type |
| RHT (DW10ATED4) | Diesel | 110 | 81 | HDi 110 (EBRHTB) |
| DISPATCH Platform/Chassis 07/2011 - | ||||
| Motor codes | Engine type | HP | kW | Type |
| RHK (DW10UTED4) | Diesel | 120 | 88 | 2.0 HDI (X_RHG) |
| JUMPER Box (244) 04/2002 - | ||||
| Motor codes | Engine type | HP | kW | Type |
| RHV (DW10TD), RHV (DW10UTD) | Diesel | 84 | 62 | 2.0 HDi |
| 4HY (DW12UTED) | Diesel | 101 | 74 | 2.2 HDi |
| JUMPER Bus (244, Z_) 04/2002 - | ||||
| Motor codes | Engine type | HP | kW | Type |
| RHV (DW10UTD) | Diesel | 84 | 62 | 2.0 HDi |
| 4HY (DW12UTED) | Diesel | 101 | 74 | 2.2 HDi |
| JUMPER Platform/Chassis (244) 04/2002 - | ||||
| Motor codes | Engine type | HP | kW | Type |
| RHV (DW10UTD) | Diesel | 84 | 62 | 2.0 HDi |
| 4HY (DW12UTED) | Diesel | 101 | 74 | 2.2 HDi |
| JUMPY (U6U) 10/1995 - 08/2000 | ||||
| Motor codes | Engine type | HP | kW | Type |
| RHW (DW10ATED4) | Diesel | 109 | 80 | 2.0 HDi 110 |
| RHX (DW10BTED) | Diesel | 94 | 69 | 2.0 HDi 95 |
| RHZ (DW10ATED), RHZ (DW10BTED), RHZ (DW10BTED+), RHZ (DW10CTED), RHZ (DW10CTED+) | Diesel | 109 | 80 | 2.0 HDi 110 |
| JUMPY 01/2007 - | ||||
| Motor codes | Engine type | HP | kW | Type |
| 9HU (DV6UTED4) | Diesel | 90 | 66 | 1.6 HDi 90 16V |
| RHK (DW10UTED4) | Diesel | 120 | 88 | 2.0 HDi 120 |
| RHR (DW10BTED4) | Diesel | 136 | 100 | 2.0 HDi 140 |
| JUMPY Box (BS_, BT_, BY_, BZ_) 10/1995 - 08/2000 | ||||
| Motor codes | Engine type | HP | kW | Type |
| RHW (DW10ATED4) | Diesel | 109 | 80 | 2.0 HDi 110 |
| RHX (DW10BTED) | Diesel | 94 | 69 | 2.0 HDi 95 |
| RHZ (DW10ATED), RHZ (DW10BTED), RHZ (DW10BTED+), RHZ (DW10CTED), RHZ (DW10CTED+) | Diesel | 109 | 80 | 2.0 HDi 110 |
| JUMPY Box 01/2007 - | ||||
| Motor codes | Engine type | HP | kW | Type |
| 9HU (DV6UTED4) | Diesel | 90 | 66 | 1.6 HDi 90 16V |
| RHK (DW10UTED4) | Diesel | 120 | 88 | 2.0 HDi 120 |
| RHR (DW10BTED4) | Diesel | 136 | 100 | 2.0 HDi 140 |
| 9HH (DV6DUM), 9HM (DV6UC) | Diesel | 90 | 66 | 1.6 HDi 90 8V |
| JUMPY Platform/Chassis (BU_, BV_, BW_, BX_) 10/1999 - 10/2006 | ||||
| Motor codes | Engine type | HP | kW | Type |
| RHW (DW10ATED4) | Diesel | 109 | 80 | 2.0 HDi 110 16V |
| RHX (DW10BTED) | Diesel | 94 | 69 | 2.0 HDi 95 |
| RHZ (DW10ATED), RHZ (DW10BTED), RHZ (DW10BTED+), RHZ (DW10CTED), RHZ (DW10CTED+) | Diesel | 109 | 80 | 2.0 HDi 110 |
| XSARA PICASSO (N68) 02/2000 - | ||||
| Motor codes | Engine type | HP | kW | Type |
| RHY (DW10TD) | Diesel | 90 | 66 | 2.0 HDi |
| 9HY (DV6TED4), 9HZ (DV6TED4) | Diesel | 109 | 80 | 1.6 HDi |
| 9HX (DV6ATED4) | Diesel | 90 | 66 | 1.6 HDi |
| DUCATO Box (244_) 05/2002 - 07/2006 | ||||
| Motor codes | Engine type | HP | kW | Type |
| RHV (DW10) | Diesel | 84 | 62 | 2.0 JTD |
| DUCATO Bus (244_) 05/2002 - 07/2006 | ||||
| Motor codes | Engine type | HP | kW | Type |
| RHV (DW10) | Diesel | 84 | 62 | 2.0 JTD |
| DUCATO Platform/Chassis (244_) 10/2002 - 07/2006 | ||||
| Motor codes | Engine type | HP | kW | Type |
| RHV (DW10) | Diesel | 84 | 62 | 2.0 JTD |
| SCUDO (270_, 272_) 01/2007 - | ||||
| Motor codes | Engine type | HP | kW | Type |
| 9HU | Diesel | 90 | 66 | 1.6 D Multijet |
| 9H07 (DV6UC), 9HM (DV6UC) | Diesel | 90 | 66 | 1.6 D Multijet |
| SCUDO Box (220_) 02/1996 - 12/2006 | ||||
| Motor codes | Engine type | HP | kW | Type |
| WJY (DW8B), WJZ (DW8) | Diesel | 69 | 51 | 1.9 D |
| SCUDO Box (270_, 272_) 01/2007 - | ||||
| Motor codes | Engine type | HP | kW | Type |
| 9HU | Diesel | 90 | 66 | 1.6 D Multijet |
| 9H07 (DV6UC), 9HM (DV6UC) | Diesel | 90 | 66 | 1.6 D Multijet |
| SCUDO Platform/Chassis (220_) 04/1998 - 12/2006 | ||||
| Motor codes | Engine type | HP | kW | Type |
| WJY (DW8) | Diesel | 69 | 51 | 1.9 D |
| SCUDO Platform/Chassis (270_, 272_) 01/2007 - | ||||
| Motor codes | Engine type | HP | kW | Type |
| 9HU | Diesel | 90 | 66 | 1.6 D Multijet |
| ULYSSE (179_) 08/2002 - 06/2011 | ||||
| Motor codes | Engine type | HP | kW | Type |
| 4HP, 4HR | Diesel | 163 | 120 | 2.2 JTD |
| RHW (DW10ATED4) | Diesel | 109 | 80 | 2.0 JTD |
| 4HW (DW12ATED4) | Diesel | 128 | 94 | 2.2 JTD |
| RHM (DW10ATED4) | Diesel | 107 | 79 | 2.0 JTD |
| RHK | Diesel | 120 | 88 | 2.0 D Multijet |
| RHR | Diesel | 136 | 100 | 2.0 D Multijet |
| 4HS, 4HT (DW12BTED4) | Diesel | 170 | 125 | 2.2 D Multijet |
| PHEDRA (179_) 09/2002 - 11/2010 | ||||
| Motor codes | Engine type | HP | kW | Type |
| RHM (DW10ATED4) | Diesel | 107 | 79 | 2.0 JTD |
| 4HS, 4HT | Diesel | 170 | 125 | 2.2 D Multijet |
| 1007 (KM_) 10/2005 - | ||||
| Motor codes | Engine type | HP | kW | Type |
| 8HX (DV4TD), 8HZ (DV4TD) | Diesel | 68 | 50 | 1.4 HDi |
| 9HZ (DV6TED4) | Diesel | 109 | 80 | 1.6 HDi |
| 206 CC (2D) 09/2000 - | ||||
| Motor codes | Engine type | HP | kW | Type |
| 9HZ (DV6TED4) | Diesel | 109 | 80 | 1.6 HDi 110 |
| 206 Hatchback (2A/C) 10/2003 - | ||||
| Motor codes | Engine type | HP | kW | Type |
| RHY (DW10TD) | Diesel | 90 | 66 | 2.0 HDI 90 |
| 8HX (DV4TD), 8HZ (DV4TD) | Diesel | 68 | 50 | 1.4 HDi eco 70 |
| 9HY (DV6TED4), 9HZ (DV6TED4) | Diesel | 109 | 80 | 1.6 HDi 110 |
| 8HX (DV4TD) | Diesel | 69 | 51 | 1.4 HDi |
| 206 SW (2E/K) 10/2003 - | ||||
| Motor codes | Engine type | HP | kW | Type |
| 8HX (DV4TD) | Diesel | 68 | 50 | 1.4 HDi |
| RHY (DW10TD) | Diesel | 90 | 66 | 2.0 HDi |
| 9HZ (DV6TED4) | Diesel | 109 | 80 | 1.6 HDi 110 |
| 206 Saloon 03/2007 - | ||||
| Motor codes | Engine type | HP | kW | Type |
| 8HZ (DV4TD) | Diesel | 68 | 50 | 1.4 HDi eco 70 |
| 206 Van 09/2001 - 03/2009 | ||||
| Motor codes | Engine type | HP | kW | Type |
| 8HX (DV4TD), 8HZ (DV4TD) | Diesel | 68 | 50 | 1.4 HDi |
| 206+ (T3E) 07/2010 - | ||||
| Motor codes | Engine type | HP | kW | Type |
| 8HR (DV4C), 8HX (DV4TD), 8HZ (DV4TD) | Diesel | 68 | 50 | 1.4 HDi eco 70 |
| 207 (WA_, WC_) 06/2007 - | ||||
| Motor codes | Engine type | HP | kW | Type |
| 9HX (DV6ATED4) | Diesel | 90 | 66 | 1.6 HDi |
| 9HY (DV6TED4), 9HZ (DV6TED4) | Diesel | 109 | 80 | 1.6 HDi |
| 8HR (DV4C), 8HZ (DV4TD) | Diesel | 68 | 50 | 1.4 HDi |
| 207 CC (WD_) 02/2007 - | ||||
| Motor codes | Engine type | HP | kW | Type |
| 9HZ (DV6TED4) | Diesel | 109 | 80 | 1.6 HDi |
| 207 SW (WK_) 06/2007 - | ||||
| Motor codes | Engine type | HP | kW | Type |
| 9HV (DV6TED4), 9HX (DV6ATED4) | Diesel | 90 | 66 | 1.6 HDi |
| 9HZ (DV6TED4) | Diesel | 109 | 80 | 1.6 HDi |
| 207 SW Estate Van (WK_) 08/2007 - 12/2012 | ||||
| Motor codes | Engine type | HP | kW | Type |
| 9HX (DV6ATED4) | Diesel | 90 | 66 | 1.6 HDi |
| 207 Van 04/2007 - | ||||
| Motor codes | Engine type | HP | kW | Type |
| 8HZ (DV4TD) | Diesel | 68 | 50 | 1.4 HDi |
| 9HV (DV6TED4), 9HX (DV6ATED4) | Diesel | 90 | 66 | 1.6 HDi |
| 3008 MPV (0U_) 06/2009 - | ||||
| Motor codes | Engine type | HP | kW | Type |
| 9HZ (DV6TED4) | Diesel | 109 | 80 | 1.6 HDi |
| 3008 Van (0U_) 06/2009 - 08/2016 | ||||
| Motor codes | Engine type | HP | kW | Type |
| 9HZ (DV6TED4) | Diesel | 109 | 80 | HDi 110 (0U9HZ8, 0U9HZT) |
| 307 (3A/C) 04/2005 - | ||||
| Motor codes | Engine type | HP | kW | Type |
| RHY (DW10TD) | Diesel | 90 | 66 | 2.0 HDi 90 |
| RHS (DW10ATED) | Diesel | 107 | 79 | 2.0 HDi 110 |
| RHR (DW10BTED4) | Diesel | 136 | 100 | 2.0 HDi 135 |
| 9HY (DV6TED4), 9HZ (DV6TED4) | Diesel | 109 | 80 | 1.6 HDi 110 |
| 9HV (DV6ATED4), 9HV (DV6TED4), 9HX (DV6ATED4) | Diesel | 90 | 66 | 1.6 HDi |
| 307 Break (3E) 04/2005 - 04/2008 | ||||
| Motor codes | Engine type | HP | kW | Type |
| RHY (DW10TD) | Diesel | 90 | 66 | 2.0 HDI 90 |
| 9HY (DV6TED4), 9HZ (DV6TED4) | Diesel | 109 | 80 | 1.6 HDi 110 |
| RHR (DW10BTED4) | Diesel | 136 | 100 | 2.0 HDi 135 |
| RHS (DW10ATED) | Diesel | 107 | 79 | 2.0 HDI 110 |
| 9HV (DV6ATED4) | Diesel | 90 | 66 | 1.6 HDi |
| 307 CC (3B) 10/2003 - | ||||
| Motor codes | Engine type | HP | kW | Type |
| RHR (DW10BTED4) | Diesel | 136 | 100 | 2.0 HDi 135 |
| 307 SW (3H) 11/2003 - 07/2007 | ||||
| Motor codes | Engine type | HP | kW | Type |
| RHY (DW10TD) | Diesel | 90 | 66 | 2.0 HDI 90 |
| RHS (DW10ATED) | Diesel | 107 | 79 | 2.0 HDI 110 |
| 9HY (DV6TED4), 9HZ (DV6TED4) | Diesel | 109 | 80 | 1.6 HDI 110 |
| RHR (DW10BTED4) | Diesel | 136 | 100 | 2.0 HDi 135 |
| 9HV (DV6ATED4), 9HV (DV6TED4B), 9HV (DV6TED4BU), 9HX (DV6ATED4), 9HX (DV6AUTED4) | Diesel | 90 | 66 | 1.6 HDI 90 |
| 308 (4A_, 4C_) 09/2007 - | ||||
| Motor codes | Engine type | HP | kW | Type |
| 9HV (DV6TED4), 9HX (DV6ATED4) | Diesel | 90 | 66 | 1.6 HDi |
| 9HZ (DV6TED4) | Diesel | 109 | 80 | 1.6 HDi |
| RHR (DW10BTED4), RHR (DW10CB) | Diesel | 136 | 100 | 2.0 HDi |
| 308 CC (4B_) 06/2009 - | ||||
| Motor codes | Engine type | HP | kW | Type |
| RHF (DW10BTED4) | Diesel | 140 | 103 | 2.0 HDi |
| RHR (DW10BTED4) | Diesel | 136 | 100 | 2.0 HDi |
| 308 SW (4E_, 4H_) 12/2009 - | ||||
| Motor codes | Engine type | HP | kW | Type |
| 9HV (DV6ATED4), 9HX (DV6ATED4) | Diesel | 90 | 66 | 1.6 HDi |
| 9HZ (DV6TED4) | Diesel | 109 | 80 | 1.6 HDi |
| RHR (DW10BTED4) | Diesel | 136 | 100 | 2.0 HDi |
| RHR (DW10BTED4) | Diesel | 140 | 103 | 2.0 HDi |
| 308 SW II 06/2014 - | ||||
| Motor codes | Engine type | HP | kW | Type |
| Petrol | 115 | 85 | 1.6 VTi | |
| 406 (8B) 10/2000 - 05/2004 | ||||
| Motor codes | Engine type | HP | kW | Type |
| RHY (DW10TD) | Diesel | 90 | 66 | 2.0 HDI 90 |
| RHS (DW10ATED), RHZ (DW10ATED) | Diesel | 107 | 79 | 2.0 HDi 110 |
| 406 Break (8E/F) 10/2000 - 10/2004 | ||||
| Motor codes | Engine type | HP | kW | Type |
| RHZ (DW10ATED) | Diesel | 109 | 80 | 2.0 HDI 110 |
| RHY (DW10TD) | Diesel | 90 | 66 | 2.0 HDI 90 |
| RHS (DW10ATED), RHZ (DW10ATED) | Diesel | 107 | 79 | 2.0 HDi 110 |
| 407 (6D_) 05/2004 - | ||||
| Motor codes | Engine type | HP | kW | Type |
| RHR (DW10BTED4) | Diesel | 136 | 100 | 2.0 HDi 135 |
| 9HZ (DV6TED4) | Diesel | 109 | 80 | 1.6 HDi 110 |
| RHF (DW10BTED4) | Diesel | 140 | 103 | 2.0 HDi |
| 407 Coupe (6C_) 10/2005 - | ||||
| Motor codes | Engine type | HP | kW | Type |
| RHR (DW10BTED4) | Diesel | 136 | 100 | 2.0 HDi |
| 407 SW (6E_) 05/2004 - | ||||
| Motor codes | Engine type | HP | kW | Type |
| 9HZ (DV6TED4) | Diesel | 109 | 80 | 1.6 HDi 110 |
| RHR (DW10BTED4) | Diesel | 136 | 100 | 2.0 HDi 135 |
| RHR (DW10BTED4) | Diesel | 140 | 103 | 2.0 HDi |
| RHL (DW10BTED4) | Diesel | 126 | 93 | 2.0 HDi |
| 5008 09/2009 - | ||||
| Motor codes | Engine type | HP | kW | Type |
| 9HZ (DV6TED4) | Diesel | 110 | 80 | 1.6 HDi |
| 607 (9D, 9U) 02/2000 - 08/2005 | ||||
| Motor codes | Engine type | HP | kW | Type |
| 4HX (DW12TED4/FAP) | Diesel | 133 | 98 | 2.2 HDi |
| 807 (E) 06/2002 - | ||||
| Motor codes | Engine type | HP | kW | Type |
| RHM (DW10ATED4), RHT (DW10ATED4), RHW (DW10ATED4) | Diesel | 107 | 79 | 2.0 HDi |
| 4HW (DW12ATED4), 4HW (DW12TED4) | Diesel | 128 | 94 | 2.2 HDi |
| RHD (DW10CTED4), RHR (DW10BTED4) | Diesel | 136 | 100 | 2.0 HDI |
| 4HT (DW12BTED4) | Diesel | 170 | 125 | 2.2 HDi |
| RHK (DW10UTED4) | Diesel | 120 | 88 | 2.0 HDi |
| RHW (DW10ATED4) | Diesel | 109 | 80 | 2.0 HDi |
| 4HR (DW12BTED4) | Diesel | 163 | 120 | 2.2 HDi |
| 4HZ (DW12TED4) | Diesel | 136 | 100 | 2.2 HDi |
| 807 Van (EB_) 04/2004 - 05/2006 | ||||
| Motor codes | Engine type | HP | kW | Type |
| RHT (DW10ATED4), RHW (DW10ATED4) | Diesel | 109 | 80 | 2.0 HDi (EBRHTBF, EBRHWBF) |
| BOXER Box (244) 04/2002 - | ||||
| Motor codes | Engine type | HP | kW | Type |
| RHV (DW10TD), RHV (DW10UTD) | Diesel | 84 | 62 | 2.0 HDi |
| 4HY (DW12UTED) | Diesel | 101 | 74 | 2.2 HDi |
| BOXER Bus (244, Z_) 04/2002 - | ||||
| Motor codes | Engine type | HP | kW | Type |
| RHV (DW10TD), RHV (DW10UTD) | Diesel | 84 | 62 | 2.0 HDi |
| 4HY (DW12UTED) | Diesel | 101 | 74 | 2.2 HDi |
| BOXER Platform/Chassis (244) 04/2002 - | ||||
| Motor codes | Engine type | HP | kW | Type |
| RHV (DW10TD), RHV (DW10UTD) | Diesel | 84 | 62 | 2.0 HDi |
| 4HY (DW12UTED) | Diesel | 101 | 74 | 2.2 HDi |
| EXPERT (224) 02/1996 - 09/2000 | ||||
| Motor codes | Engine type | HP | kW | Type |
| RHZ (DW10ATED), RHZ (DW10BTED), RHZ (DW10BTED+), RHZ (DW10CTED) | Diesel | 109 | 80 | 2.0 HDI |
| RHW (DW10ATED4) | Diesel | 109 | 80 | 2.0 HDI 16V |
| WJY (DW8B), WJZ (DW8) | Diesel | 69 | 51 | 1.9 D |
| RHX (DW10BTED) | Diesel | 94 | 69 | 2.0 HDi |
| EXPERT Box (222) 02/1996 - 09/2000 | ||||
| Motor codes | Engine type | HP | kW | Type |
| RHX (DW10BTED) | Diesel | 94 | 69 | 2.0 HDI |
| RHZ (DW10ATED), RHZ (DW10BTED), RHZ (DW10BTED+), RHZ (DW10CTED) | Diesel | 109 | 80 | 2.0 HDI |
| RHW (DW10ATED4) | Diesel | 109 | 80 | 2.0 HDI |
| WJY (DW8B), WJZ (DW8) | Diesel | 69 | 51 | 1.9 D 70 |
| EXPERT Box (VF3A_, VF3U_, VF3X_) 01/2007 - | ||||
| Motor codes | Engine type | HP | kW | Type |
| 9HU (DV6UTED4) | Diesel | 90 | 66 | 1.6 HDi 90 16V |
| RHK (DW10UTED4) | Diesel | 120 | 88 | 2.0 HDi 120 |
| RHR (DW10BTED4) | Diesel | 136 | 100 | 2.0 HDi 140 |
| RHK (DW10UTED4) | Diesel | 120 | 88 | 2.0 HDi 120 4x4 |
| EXPERT Platform/Chassis (223) 02/1996 - 09/2000 | ||||
| Motor codes | Engine type | HP | kW | Type |
| RHX (DW10BTED) | Diesel | 94 | 69 | 2.0 HDi |
| RHW (DW10ATED4) | Diesel | 109 | 80 | 2.0 HDi |
| Diesel | 109 | 80 | 2.0 HDI | |
| EXPERT Platform/Chassis 01/2007 - | ||||
| Motor codes | Engine type | HP | kW | Type |
| 9HU (DV6UTED4) | Diesel | 90 | 66 | 1.6 HDi 90 16V |
| RHK (DW10UTED4) | Diesel | 120 | 88 | 2.0 HDi 120 |
| RHR (DW10BTED4) | Diesel | 136 | 100 | 2.0 HDi 140 |
| 9HH (DV6DUM), 9HM (DV6UC) | Diesel | 90 | 66 | 1.6 HDi 90 8V |
| EXPERT Tepee (VF3V_) 01/2007 - | ||||
| Motor codes | Engine type | HP | kW | Type |
| RHK (DW10UTED4) | Diesel | 120 | 88 | 2.0 HDi 120 4x4 |
| 9HU (DV6UTED4) | Diesel | 90 | 66 | 1.6 HDi 90 16V |
| RHK (DW10UTED4) | Diesel | 120 | 88 | 2.0 HDi 120 |
| RHR (DW10BTED4) | Diesel | 136 | 100 | 2.0 HDi 140 |
| PARTNER Box (5) 06/1996 - 09/2005 | ||||
| Motor codes | Engine type | HP | kW | Type |
| RHY (DW10TD) | Diesel | 90 | 66 | 2.0 HDi |
| WJY (DW8B) | Diesel | 69 | 51 | 1.9 D 4x4 |
| RHY (DW10TD) | Diesel | 90 | 66 | 2.0 HDi 4x4 |
| WJY (DW8B), WJZ (DW8) | Diesel | 69 | 51 | 1.9 D |
| 9HW (DV6BTED4) | Diesel | 75 | 55 | 1.6 HDi 75 |
| 9HX (DV6ATED4) | Diesel | 90 | 66 | 1.6 HDi 90 |
| 9HK (DV6ETEDM) | Diesel | 75 | 55 | 1.6 HDi 75 |
| PARTNER Box 11/2010 - | ||||
| Motor codes | Engine type | HP | kW | Type |
| 9HT (DV6BTED4), 9HW (DV6BTED4) | Diesel | 75 | 55 | 1.6 HDi |
| 9HS (DV6TED4BU), 9HX (DV6AUTED4) | Diesel | 90 | 66 | 1.6 HDi 16V |
| 9HZ (DV6TED4) | Diesel | 109 | 80 | 1.6 HDi |
| 9HS (DV6TED4BU), 9HX (DV6ATED4), 9HX (DV6AUTED4) | Diesel | 90 | 66 | 1.6 HDi 16V 4x4 |
| 9HJ (DV6DTEDM), 9HX (DV6ATED4) | Diesel | 92 | 68 | 1.6 HDi 16V |
| PARTNER Combispace (5F) 07/2001 - 03/2008 | ||||
| Motor codes | Engine type | HP | kW | Type |
| RHY (DW10TD) | Diesel | 90 | 66 | 2.0 HDI |
| 9HX (DV6ATED4) | Diesel | 90 | 66 | 1.6 HDi 90 |
| 9HW (DV6BTED4) | Diesel | 75 | 55 | 1.6 HDi 75 |
| WJY (DW8B) | Diesel | 69 | 51 | 1.9 D 4x4 |
| RHY (DW10TD) | Diesel | 90 | 66 | 2.0 HDi 4x4 |
| PARTNER ORIGIN Box Body/MPV (G_) 08/2008 - 12/2015 | ||||
| Motor codes | Engine type | HP | kW | Type |
| 9HW (DV6BTED4) | Diesel | 75 | 55 | 1.6 HDi 75 |
| 9HX (DV6ATED4) | Diesel | 90 | 66 | 1.6 HDi 90 |
| PARTNER ORIGIN MPV (G_) 08/2008 - 12/2013 | ||||
| Motor codes | Engine type | HP | kW | Type |
| 9HW (DV6BTED4) | Diesel | 75 | 55 | 1.6 HDi 75 |
| PARTNER Platform/Chassis 01/1999 - 07/2008 | ||||
| Motor codes | Engine type | HP | kW | Type |
| WJY (DW8B), WJZ (DW8) | Diesel | 69 | 51 | 1.9 D |
| Diesel | 90 | 66 | 2.0 HDi | |
| PARTNER Platform/Chassis 01/2009 - | ||||
| Motor codes | Engine type | HP | kW | Type |
| 9HT (DV6BTED4) | Diesel | 75 | 55 | 1.6 HDi |
| 9HS (DV6TED4BU), 9HX (DV6ATED4) | Diesel | 90 | 66 | 1.6 HDi 16V |
| PARTNER Tepee 08/2010 - | ||||
| Motor codes | Engine type | HP | kW | Type |
| 9HV (DV6TED4), 9HX (DV6ATED4) | Diesel | 90 | 66 | 1.6 HDi 16V |
| 9HZ (DV6TED4) | Diesel | 109 | 80 | 1.6 HDi |
| 9HT (DV6BTED4) | Diesel | 75 | 55 | 1.6 HDi 75 (16V) |
| MEGANE II Estate (KM0/1_) 08/2003 - 07/2009 | ||||
| Motor codes | Engine type | HP | kW | Type |
| K4M 762 | Petrol | 105 | 77 | 1.6 16V |
