Starter, BOSCH 0 986 021 620
- Delivery from 19/09
- Article number: 0 986 021 620
- Supplier name: BOSCH
- Description: Starter
149.13 EUR (incl. VAT)

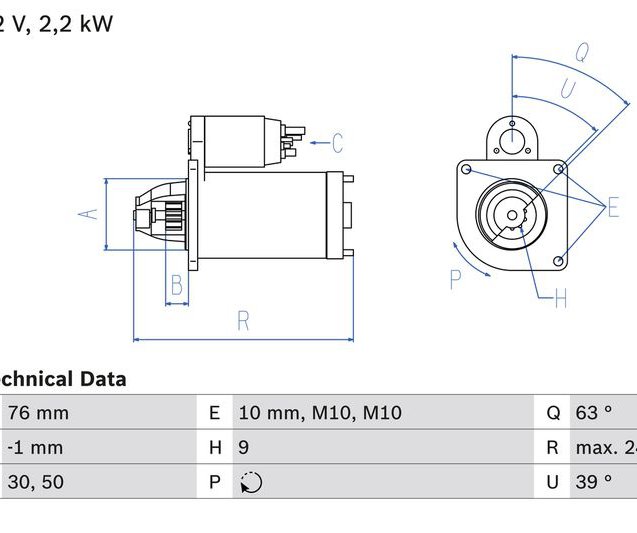

| Voltage [V] | 12 V |
| Rated Power [kW] | 2,2 kW |
| Number of mounting bores | 1 |
| Number of threaded holes | 2 |
| Number of Teeth | 9 |
| Clamp | 50 |
| Clamp | 30 |
| Flange Ø [mm] | 76,2 mm |
| Rotation Direction | Clockwise rotation |
| Pinion Rest Position [mm] | -0,7 mm |
| Starter Type | Self-supporting |
| Thread Size 1 | M10x1.5 |
| Thread Size 2 | M10x1.5 |
| Bore Ø [mm] | 10 mm |
| Length [mm] | 241 mm |
| Position/Degree | rechts ° |
| Mounting Angle [degrees] | 39 ° |
| Jaw opening angle measurement [Degree] | 63 ° |
| Fastening hole angle measurement [Degree] | 39 ° |
| FORD | 6G9N1 1000 KB |
| FORD | 8G9N 11000 AB |
| VOLVO | 30724473 |
| VOLVO | 30782052 |
| VOLVO | 30782228 |
| VOLVO | 36000237 |
| VOLVO | 36002642 |
| VOLVO | 8603539 |
| C30 (533) 10/2006 - 12/2012 | ||||
| Motor codes | Engine type | HP | kW | Type |
| D 5204 T5 | Diesel | 150 | 110 | D3 |
| D 5204 T | Diesel | 177 | 130 | D4 |
| D 5244 T13, D 5244 T8 | Diesel | 180 | 132 | D5 |
| D 5244 T9 | Diesel | 163 | 120 | D5 |
| C70 II Convertible (542) 10/2010 - 06/2013 | ||||
| Motor codes | Engine type | HP | kW | Type |
| D 5204 T5 | Diesel | 150 | 110 | D3 |
| D 5204 T | Diesel | 177 | 130 | D4 |
| D 5244 T13, D 5244 T8 | Diesel | 180 | 132 | D5 |
| D 5244 T9 | Diesel | 163 | 120 | 2.4 D |
| S40 II (544) 01/2005 - 12/2012 | ||||
| Motor codes | Engine type | HP | kW | Type |
| D 5204 T5 | Diesel | 150 | 110 | D3 |
| D 5204 T | Diesel | 177 | 130 | D4 |
| D 5244 T13, D 5244 T8 | Diesel | 179 | 132 | 2.4 D5 |
| D 5244 T9 | Diesel | 163 | 120 | 2.4 CDI |
| S60 I (384) 07/2000 - 04/2010 | ||||
| Motor codes | Engine type | HP | kW | Type |
| D 5244 T | Diesel | 163 | 120 | 2.4 D5 |
| D 5244 T2 | Diesel | 130 | 96 | 2.4 D |
| D 5244 T4 | Diesel | 185 | 136 | 2.4 D5 |
| D 5244 T7 | Diesel | 126 | 93 | 2.4 D |
| D 5244 T6 | Diesel | 122 | 90 | 2.4 D |
| D 5244 T3 | Diesel | 116 | 85 | 2.4 CDI |
| S60 II (134) 05/2012 - 12/2015 | ||||
| Motor codes | Engine type | HP | kW | Type |
| D 5244 T11, D 5244 T15 | Diesel | 215 | 158 | D5 |
| D 5244 T15 | Diesel | 215 | 158 | D5 AWD |
| D 5244 T15 | Diesel | 230 | 169 | D5 |
| D 5244 T15 | Diesel | 230 | 169 | D5 AWD |
| D 5244 T21 | Diesel | 190 | 140 | 2.4 D4 AWD |
| S60 II Cross Country (134) 03/2015 - 12/2018 | ||||
| Motor codes | Engine type | HP | kW | Type |
| D 5244 T21 | Diesel | 190 | 140 | D4 AWD |
| S80 I (184) 06/1998 - 07/2006 | ||||
| Motor codes | Engine type | HP | kW | Type |
| D 5244 T | Diesel | 163 | 120 | 2.4 D5 |
| D 5244 T2 | Diesel | 131 | 96 | 2.4 D |
| S80 II (124) 01/2008 - 09/2012 | ||||
| Motor codes | Engine type | HP | kW | Type |
| D 5204 T2, D 5204 T3 | Diesel | 163 | 120 | D3 / D4 |
| D 5244 T15 | Diesel | 215 | 158 | D5 AWD |
| D 5244 T11, D 5244 T15 | Diesel | 215 | 158 | D5 |
| D 5244 T4 | Diesel | 185 | 136 | D5 |
| D 5244 T, D 5244 T5 | Diesel | 163 | 120 | 2.4 D |
| D 5244 T4 | Diesel | 185 | 136 | D5 AWD |
| D 5204 T7 | Diesel | 136 | 100 | D3 |
| D 5244 T14 | Diesel | 175 | 129 | 2.4 D |
| D 5244 T10 | Diesel | 205 | 151 | D5 |
| D 5244 T10 | Diesel | 205 | 151 | D5 AWD |
| V50 (545) 01/2005 - 12/2012 | ||||
| Motor codes | Engine type | HP | kW | Type |
| D 5204 T | Diesel | 177 | 130 | D4 |
| D 5204 T5 | Diesel | 150 | 110 | D3 |
| D 5244 T13, D 5244 T8 | Diesel | 179 | 132 | 2.4 D5 |
| D 5244 T9 | Diesel | 163 | 120 | 2.4 Tdi |
| V60 (155, 157) 05/2012 - 12/2015 | ||||
| Motor codes | Engine type | HP | kW | Type |
| D 5244 T23 | Diesel | 230 | 169 | D5 |
| D 5244 T15 | Diesel | 230 | 169 | D5 AWD |
| D 5244 T21 | Diesel | 190 | 140 | D4 AWD |
| V60 I Cross Country (157) 03/2015 - 05/2018 | ||||
| Motor codes | Engine type | HP | kW | Type |
| D 5244 T21 | Diesel | 200 | 147 | D4 Polestar AWD |
| D 5244 T21 | Diesel | 190 | 140 | D4 AWD |
| V70 II (285) 11/1999 - 08/2007 | ||||
| Motor codes | Engine type | HP | kW | Type |
| D 5244 T | Diesel | 163 | 120 | 2.4 D5 |
| D 5244 T2 | Diesel | 131 | 96 | 2.4 D |
| D 5244 T, D 5244 T2, D 5244 T5 | Diesel | 163 | 120 | 2.4 D5 AWD |
| D 5244 T4 | Diesel | 185 | 136 | 2.4 D5 |
| D 5244 T4 | Diesel | 185 | 136 | 2.4 D5 AWD |
| D 5244 T7 | Diesel | 126 | 93 | 2.4 D |
| D 5244 T6 | Diesel | 122 | 90 | 2.4 CDI |
| V70 III (135) 10/2007 - 12/2011 | ||||
| Motor codes | Engine type | HP | kW | Type |
| D 5204 T2, D 5204 T3 | Diesel | 163 | 120 | D3 / D4 |
| D 5244 T11, D 5244 T15 | Diesel | 215 | 158 | D5 |
| D 5244 T15 | Diesel | 215 | 158 | D5 AWD |
| D 5244 T5 | Diesel | 163 | 120 | 2.4 D |
| D 5244 T4 | Diesel | 185 | 136 | D5 |
| D 5244 T4 | Diesel | 185 | 136 | D5 AWD |
| D 5244 T10 | Diesel | 205 | 151 | D5 |
| D 5244 T10 | Diesel | 205 | 151 | D5 AWD |
| D 5244 T17 | Diesel | 163 | 120 | D4 AWD |
| D 5204 T7 | Diesel | 136 | 100 | D3 |
| D 5244 T12 | Diesel | 181 | 133 | D4 AWD |
| D 5244 T15 | Diesel | 230 | 169 | D5 AWD |
| Diesel | 230 | 169 | D5 | |
| V70 III Estate Van (135) 09/2013 - 12/2015 | ||||
| Motor codes | Engine type | HP | kW | Type |
| D 5244 T11, D 5244 T15 | Diesel | 215 | 158 | 2.4 D5 |
| D 5244 T17 | Diesel | 163 | 120 | 2.4 D4 AWD |
| D 5204 T7 | Diesel | 136 | 100 | 2.0 D3 DRIVe |
| XC60 (156) 04/2012 - 12/2015 | ||||
| Motor codes | Engine type | HP | kW | Type |
| D 5244 T11, D 5244 T15 | Diesel | 215 | 158 | D5 AWD |
| D 5244 T11, D 5244 T15 | Diesel | 215 | 158 | D5 |
| D 5244 T16, D 5244 T17, D 5244 T5 | Diesel | 163 | 120 | 2.4 D / D3 / D4 AWD |
| D 5244 T4 | Diesel | 185 | 136 | D5 AWD |
| D 5244 T10 | Diesel | 205 | 151 | D5 AWD |
| D 5244 T14 | Diesel | 175 | 129 | 2.4 D |
| D 5204 T2, D 5204 T3 | Diesel | 163 | 120 | D3 / D4 |
| D 5204 T7 | Diesel | 136 | 100 | D3 |
| D 5244 T12 | Diesel | 181 | 133 | D4 AWD |
| D 5244 T23 | Diesel | 230 | 169 | D5 AWD |
| D 5244 T21 | Diesel | 190 | 140 | D4 AWD |
| D 5244 T20, D 5244 T22 | Diesel | 220 | 162 | D5 AWD |
| XC60 I VAN (156) 09/2013 - 12/2015 | ||||
| Motor codes | Engine type | HP | kW | Type |
| D 5204 T7 | Diesel | 136 | 100 | D3 |
| D 5244 T11, D 5244 T15 | Diesel | 215 | 158 | D5 AWD |
| XC70 CROSS COUNTRY (295) 11/1997 - 09/2002 | ||||
| Motor codes | Engine type | HP | kW | Type |
| D 5244 T | Diesel | 163 | 120 | 2.4 D5 XC AWD |
| D 5244 T4 | Diesel | 185 | 136 | 2.4 D5 AWD |
| XC70 II (136) 04/2010 - 12/2015 | ||||
| Motor codes | Engine type | HP | kW | Type |
| D 5244 T11, D 5244 T15 | Diesel | 215 | 158 | D5 AWD |
| D 5204 T2, D 5204 T3 | Diesel | 163 | 120 | D3 |
| D 5244 T4 | Diesel | 185 | 136 | D5 AWD |
| D 5244 T16, D 5244 T17, D 5244 T5 | Diesel | 163 | 120 | 2.4 D / D4 AWD |
| D 5244 T10 | Diesel | 205 | 151 | D5 AWD |
| D 5244 T14 | Diesel | 175 | 129 | 2.4 D |
| D 5244 T12 | Diesel | 181 | 133 | D4 AWD |
| D 5244 T20 | Diesel | 220 | 162 | D5 AWD |
| D 5244 T15 | Diesel | 230 | 169 | D5 AWD |
| XC70 II VAN (136) 09/2013 - 12/2016 | ||||
| Motor codes | Engine type | HP | kW | Type |
| D 5204 T3 | Diesel | 163 | 120 | 2.0 D4 |
| XC90 I (275) 10/2002 - 09/2014 | ||||
| Motor codes | Engine type | HP | kW | Type |
| D 5244 T18 | Diesel | 200 | 147 | D5 AWD |
| D 5244 T, D 5244 T5 | Diesel | 163 | 120 | D5 AWD |
| D 5244 T4 | Diesel | 185 | 136 | D5 AWD |
| D 5244 T5 | Diesel | 163 | 120 | D3 / D5 |
| D 5244 T5 | Diesel | 163 | 120 | D5 AWD |
