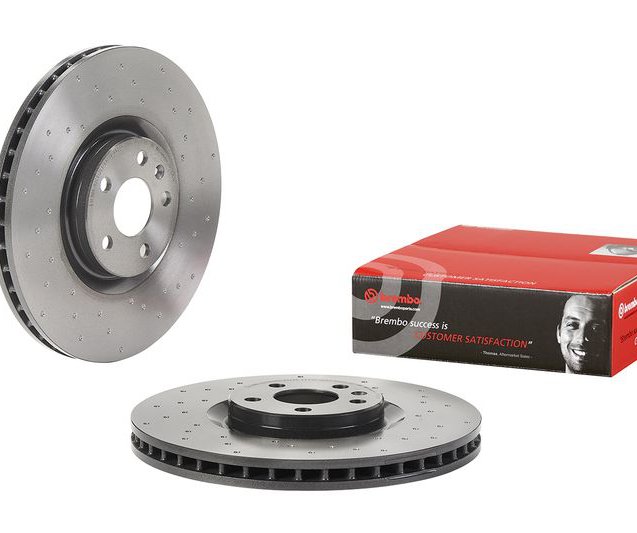

Brake Disc, BREMBO 09.C936.1X
- Delivery from 18/06
- Article number: 09.C936.1X
- Supplier name: BREMBO
- Description: Brake Disc
130.96 EUR (incl. VAT)

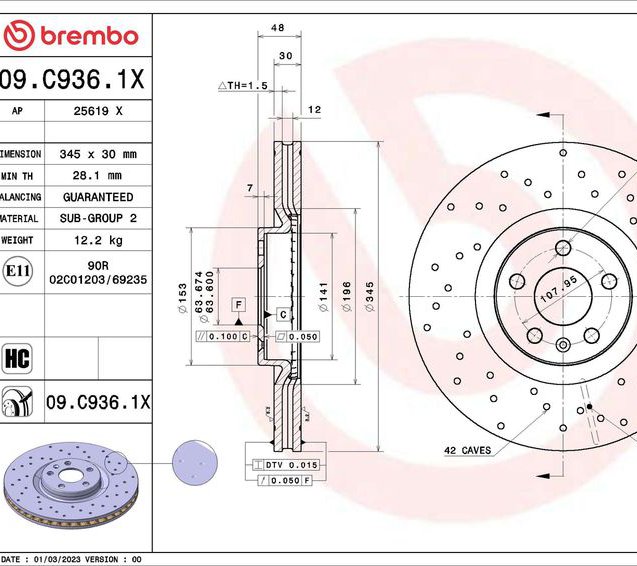

| Brake Disc Type | perforated/vented |
| Brake Disc Thickness [mm] | 30 mm |
| Number of Holes | 5 |
| Height [mm] | 48 mm |
| Centering Diameter [mm] | 63,6 mm |
| Outer Diameter [mm] | 345 mm |
| Machining | High-carbon |
| Surface | Coated |
| Minimum thickness [mm] | 28,1 mm |
| VOLVO | 31400568 |
| VOLVO | 314005680 |
| VOLVO | 31471752 |
| VOLVO | 314717520 |
| VOLVO | 32300811 |
| C40 (539) 10/2021 - | ||||
| Motor codes | Engine type | HP | kW | Type |
| E400V12, E400V6 | Electric | 408 | 300 | Recharge AWD |
| E400V16 | Electric | 238 | 175 | Recharge |
| E400V8 | Electric | 252 | 185 | Recharge |
| E400V12 | Electric | 408 | 300 | Recharge AWD |
| S60 III (224) 03/2020 - 12/2023 | ||||
| Motor codes | Engine type | HP | kW | Type |
| B 4204 T26 | Petrol | 250 | 184 | T5 |
| B 4204 T31, B 4204 T44 | Petrol | 190 | 140 | T4 |
| B 4204 T34 | Petrol/Electric | 390 | 287 | T8 Twin Engine AWD |
| B 4204 T34, B 4204 T46 | Petrol/Electric | 340 | 250 | T6 Twin Engine AWD |
| B 4204 T26 | Petrol | 250 | 184 | T5 AWD |
| B 4204 T29 | Petrol | 310 | 228 | T6 AWD |
| B 4204 T23 | Petrol | 254 | 187 | T5 AWD |
| B 4204 T20 | Petrol | 249 | 183 | T5 AWD |
| B 4204 T26P | Petrol | 253 | 186 | T5 Polestar |
| B 4204 T31P | Petrol | 210 | 155 | T4 Polestar |
| B 420 T5, B 420 T6 | Petrol/Electric | 197 | 145 | B4 Mild-Hybrid |
| B 420 T2 | Petrol/Electric | 250 | 184 | B5 Mild-Hybrid |
| B 420 T2 | Petrol/Electric | 250 | 184 | B5 Mild-Hybrid AWD |
| B 4204 T27, B 4204 T35 | Petrol/Electric | 407 | 299 | T8 Plug-in Hybrid AWD |
| B 420 T3, B 420 T4 | Petrol/Electric | 163 | 120 | B3 MHEV |
| B 4204 T29 | Petrol | 326 | 240 | T6 Polestar AWD |
| B 4204 T57 | Petrol/Electric | 431 | 317 | T8 Recharge AWD |
| B 4204 T52 | Petrol/Electric | 349 | 257 | T6 Twin Engine AWD |
| S90 II (234) 03/2016 - | ||||
| Motor codes | Engine type | HP | kW | Type |
| B 4204 T27 | Petrol | 320 | 235 | 2.0 T6 AWD |
| D 4204 T23 | Diesel | 235 | 173 | 2.0 D5 AWD |
| D 4204 T14 | Diesel | 190 | 140 | 2.0 D4 |
| B 4204 T23 | Petrol | 254 | 187 | 2.0 T5 |
| D 4204 T14 | Diesel | 190 | 140 | 2.0 D4 AWD |
| D 4204 T9 | Diesel | 150 | 110 | 2.0 D3 |
| B 4204 T20 | Petrol | 249 | 183 | 2.0 |
| B 4204 T31 | Petrol | 190 | 140 | 2.0 T4 |
| B 4204 T26 | Petrol | 250 | 184 | 2.0 T5 |
| Petrol/Electro | 303 | 223 | 2.0 T8 Hybrid AWD | |
| D 4204 T7 | Diesel | 163 | 120 | D4 |
| B 4204 T34, B 4204 T53 | Petrol/Electric | 317 | 233 | T8 Hybrid Polestar AWD |
| B 4204 T26 | Petrol | 253 | 186 | T5 Drive-E Polestar |
| D 4204 T14 | Diesel | 200 | 147 | D4 Drive-E Polestar |
| B 4204 T31 | Petrol | 210 | 155 | T4 Polestar |
| D 4204 T23 | Diesel | 240 | 177 | D5 Polestar AWD |
| B 4204 T35 | Petrol/Electric | 334 | 246 | T8 Plug-in Hybrid Polestar AWD |
| B 4204 T27 | Petrol | 334 | 246 | T6 Drive-E Polestar AWD |
| D 4204 T14 | Diesel | 200 | 147 | D4 Drive-E Polestar AWD |
| B 420 T6 | Petrol/Electric | 197 | 145 | B4 Mild-Hybrid |
| B 420 T2, B 4204 T26 | Petrol/Electric | 250 | 184 | B5 Mild-Hybrid |
| B 420 T | Petrol/Electric | 299 | 220 | B6 Mild-Hybrid AWD |
| B 4204 T35 | Petrol/Electric | 407 | 299 | T8 Plug-in Hybrid AWD |
| B 4204 T53, B 4204 T57 | Petrol/Electric | 462 | 340 | T8 Plug-in Hybrid AWD |
| D 420 T2 | Diesel/Electro | 245 | 180 | B5 Mild Hybrid AWD |
| V60 II (225) 02/2018 - | ||||
| Motor codes | Engine type | HP | kW | Type |
| B 4204 T26 | Petrol | 250 | 184 | T5 |
| Petrol | 310 | 228 | T6 AWD | |
| B 4204 T34 | Petrol/Electric | 390 | 287 | T8 Plug-in Hybrid AWD |
| Diesel | 150 | 110 | D3 | |
| D 4204 T14 | Diesel | 190 | 140 | D4 |
| D 4204 T4 | Diesel | 150 | 110 | D3 AWD |
| D 4204 T14 | Diesel | 190 | 140 | D4 AWD |
| D 4204 T14 | Diesel | 200 | 147 | D4 Polestar |
| B 4204 T46 | Petrol/Electric | 340 | 250 | T6 Plug-in Hybrid AWD |
| B 4204 T48 | Petrol/Electric | 405 | 298 | T8 Plug-in Hybrid Polestar AWD |
| B 4204 T31, B 4204 T44 | Petrol | 190 | 140 | T4 |
| B 4204 T26 | Petrol | 250 | 184 | T5 AWD |
| B 4204 T29 | Petrol | 326 | 240 | 2.0 T6 Drive-E Polestar AWD |
| B 4204 T26P | Petrol | 253 | 186 | T5 Polestar |
| B 4204 T26P | Petrol | 253 | 186 | T5 Polestar AWD |
| B 4204 T31P | Petrol | 210 | 155 | T4 Polestar |
| D 4204 T14 | Diesel | 200 | 147 | D4 Polestar AWD |
| B 420 T | Petrol/Electric | 299 | 220 | B6 Mild-Hybrid AWD |
| B 420 T3, B 420 T4 | Petrol/Electric | 163 | 120 | B3 Mild-Hybrid |
| B 420 T5, B 420 T6 | Petrol/Electric | 197 | 145 | B4 Mild-Hybrid |
| B 420 T2 | Petrol/Electric | 250 | 184 | B5 Mild-Hybrid |
| B 420 T2 | Petrol/Electric | 250 | 184 | B5 Mild-Hybrid AWD |
| D 420 T8 | Diesel/Electro | 197 | 145 | B4 Mild-Hybrid |
| V60 II Cross Country (227) 10/2020 - | ||||
| Motor codes | Engine type | HP | kW | Type |
| D 420 T8 | Diesel/Electro | 197 | 145 | B4 Mild-Hybrid AWD |
| V90 II Cross Country (236) 09/2018 - | ||||
| Motor codes | Engine type | HP | kW | Type |
| B 4204 T23 | Petrol | 249 | 183 | T5 AWD |
| D 4204 T7 | Diesel | 163 | 120 | D4 AWD |
| B 4204 T26 | Petrol | 253 | 186 | T5 Polestar AWD |
| B 420 T2 | Petrol/Electric | 250 | 184 | B5 Mild-Hybrid AWD |
| B 4204 T27 | Petrol | 320 | 235 | T6 AWD |
| D 4204 T23 | Diesel | 235 | 173 | D5 AWD |
| D 4204 T14 | Diesel | 190 | 140 | D4 AWD |
| D 420 T2 | Diesel/Electro | 235 | 173 | B5 Mild Hybrid AWD |
| D 420 T8 | Diesel/Electro | 197 | 145 | B4 Mild-Hybrid AWD |
| D 420 T2 | Diesel/Electro | 245 | 180 | B5 Mild Hybrid Polestar AWD |
| V90 II Estate (235, 236) 10/2017 - | ||||
| Motor codes | Engine type | HP | kW | Type |
| B 4204 T23 | Petrol | 254 | 187 | 2.0 T5 |
| B 4204 T27 | Petrol | 320 | 235 | 2.0 T6 AWD |
| D 4204 T14 | Diesel | 190 | 140 | 2.0 D4 |
| D 4204 T23 | Diesel | 235 | 173 | 2.0 D5 AWD |
| B 4204 T35 | Petrol/Electro | 320 | 235 | 2.0 Hybrid AWD |
| D 4204 T9 | Diesel | 150 | 110 | 2.0 D3 |
| D 4204 T4 | Diesel | 150 | 110 | 2.0 D3 AWD |
| D 4204 T14 | Diesel | 190 | 140 | 2.0 D4 AWD |
| B 4204 T23 | Petrol | 254 | 187 | 2.0 T5 AWD |
| B 4204 T26 | Petrol | 250 | 184 | 2.0 T5 |
| B 4204 T26 | Petrol | 250 | 184 | 2.0 T5 AWD |
| B 4204 T29 | Petrol | 310 | 228 | 2.0 T6 AWD |
| B 4204 T31 | Petrol | 190 | 140 | 2.0 T4 |
| B 4204 T34 | Petrol/Electro | 303 | 223 | 2.0 T8 Hybrid AWD |
| D 4204 T7 | Diesel | 163 | 120 | D4 |
| B 4204 T34 | Petrol/Electric | 317 | 233 | T8 Plug-in Hybrid Polestar AWD |
| B 4204 T29 | Petrol | 326 | 240 | T6 Polestar AWD |
| B 4204 T26 | Petrol | 253 | 186 | T5 Polestar |
| B 4204 T31 | Petrol | 210 | 155 | T4 Polestar |
| B 4204 T35 | Petrol/Electric | 334 | 246 | T8 Plug-in Hybrid Polestar AWD |
| B 420 T6 | Petrol/Electric | 197 | 145 | B4 Mild-Hybrid |
| B 420 T2 | Petrol/Electric | 250 | 184 | B5 Mild-Hybrid |
| B 420 T | Petrol/Electric | 299 | 220 | B6 Mild-Hybrid AWD |
| B 420 T | Petrol/Electric | 348 | 256 | B6 Mild-Hybrid AWD |
| B 4204 T46 | Petrol/Electric | 340 | 250 | T6 Plug-in-Hybrid AWD |
| D 420 T8 | Diesel/Electro | 197 | 145 | B4 Mild-Hybrid |
| D 420 T2 | Diesel/Electro | 235 | 173 | B5 Mild Hybrid AWD |
| D 420 T8 | Diesel/Electro | 197 | 145 | B4 Mild-Hybrid AWD |
| D 420 T2 | Diesel/Electro | 245 | 180 | B5 Mild Hybrid Polestar AWD |
| B 4204 T57 | Petrol/Electric | 431 | 317 | T8 Recharge AWD |
| B 4204 T52 | Petrol/Electric | 349 | 257 | T6 Plug-in-Hybrid AWD |
| XC40 (536) 10/2017 - | ||||
| Motor codes | Engine type | HP | kW | Type |
| B 4204 T14 | Petrol | 247 | 182 | T5 AWD |
| D 4204 T12 | Diesel | 190 | 140 | D4 AWD |
| B 4204 T31, B 4204 T47 | Petrol | 190 | 140 | T4 |
| B 4204 T31, B 4204 T47 | Petrol | 190 | 140 | T4 AWD |
| B 3154 T | Petrol | 156 | 115 | T3 |
| D 4204 T16 | Diesel | 150 | 110 | D3 |
| D 4204 T16 | Diesel | 150 | 110 | D3 AWD |
| B 4204 T14, B 4204 T18 | Petrol | 250 | 184 | T5 AWD |
| D 4204 T12 | Diesel | 200 | 147 | D4 Polestar AWD |
| B 3154 T2, B 3154 T7 | Petrol | 163 | 120 | T3 |
| B 3154 T5 | Petrol/Electric | 262 | 193 | T5 Plug-in Hybrid |
| B 3154 T9 | Petrol | 129 | 95 | T2 |
| B 4204 T20 | Petrol | 249 | 183 | T5 Polestar AWD |
| B 420 T5, B 420 T6 | Petrol/Electric | 197 | 145 | B4 Mild-Hybrid AWD |
| B 420 T5, B 420 T6 | Petrol/Electric | 197 | 145 | B4 Mild-Hybrid |
| B 420 T2 | Petrol/Electric | 250 | 184 | B5 Mild-Hybrid AWD |
| B 3154 T10 | Petrol/Electric | 211 | 155 | T4 Plug-in Hybrid |
| E400V12, E400V6 | Electric | 408 | 300 | Recharge AWD |
| B3154T4 | Petrol | 150 | 110 | T3 |
| E400V12, E400V6 | Electric | 408 | 300 | Recharge AWD |
| E400V2 | Electric | 231 | 170 | Recharge |
| D 4204 T16 | Diesel | 160 | 118 | D3 Polestar |
| D 4204 T16 | Diesel | 160 | 118 | D3 Polestar AWD |
| E400V16 | Electric | 238 | 175 | Recharge |
| E400V8 | Electric | 252 | 185 | Recharge |
| XC60 II (246) 03/2017 - | ||||
| Motor codes | Engine type | HP | kW | Type |
| D 4204 T14 | Diesel | 190 | 140 | 2.0 D4 AWD |
| D 4204 T23 | Diesel | 235 | 173 | 2.0 D5 AWD |
| B 4204 T23 | Petrol | 254 | 187 | 2.0 T5 AWD |
| B 4204 T27 | Petrol | 320 | 235 | 2.0 T6 AWD |
| B 4204 T35 | Petrol/Electro | 320 | 235 | 2.0 T8 Hybrid AWD |
| B 4204 T23 | Petrol | 254 | 187 | 2.0 T5 |
| B 4204 T26 | Petrol | 250 | 184 | T5 |
| B 4204 T26 | Petrol | 250 | 184 | T5 AWD |
| B 4204 T29 | Petrol | 310 | 228 | T6 AWD |
| B 4204 T20 | Petrol | 249 | 183 | T5 AWD |
| B 4204 T34 | Petrol/Electric | 390 | 287 | T8 Hybrid AWD |
| D 4204 T14 | Diesel | 190 | 140 | D4 |
| D 4204 T4 | Diesel | 150 | 110 | D3 |
| B 4204 T31 | Petrol | 190 | 140 | T4 |
| D 4204 T7 | Diesel | 163 | 120 | D4 |
| B 4204 T34, B 4204 T48 | Petrol/Electric | 405 | 298 | T8 Hybrid Polestar AWD |
| D 4204 T14 | Diesel | 200 | 147 | D4 Polestar AWD |
| B 4204 T23 | Petrol | 261 | 192 | T5 Polestar AWD |
| B 4204 T35 | Petrol/Electric | 334 | 246 | T8 Hybrid AWD |
| B 4204 T27 | Petrol | 334 | 246 | T6 Polestar AWD |
| D 420 T2 | Diesel/Electro | 235 | 173 | B5 Mild-Hybrid AWD |
| D 420 T8 | Diesel/Electro | 197 | 145 | B4 Mild-Hybrid AWD |
| B 4204 T26P | Petrol | 253 | 186 | T5 Polestar AWD |
| B 4204 T26P | Petrol | 253 | 186 | T5 Polestar |
| B 4204 T29P | Petrol | 326 | 240 | T6 Polestar AWD |
| B 4204 T31P | Petrol | 210 | 155 | T4 Polestar |
| D 4204 T23 | Diesel | 240 | 177 | D5 Polestar AWD |
| D 4204 T14 | Diesel | 200 | 147 | D4 Polestar |
| B 420 T2 | Petrol/Electric | 250 | 184 | B5 Mild-Hybrid |
| B 420 T2 | Petrol/Electric | 250 | 184 | B5 Mild-Hybrid AWD |
| B 420 T | Petrol/Electric | 299 | 220 | B6 Mild-Hybrid AWD |
| B 420 T6 | Petrol/Electric | 197 | 145 | B4 Mild-Hybrid |
| B 4204 T49 | Petrol/Electric | 334 | 246 | T8 Hybrid Polestar AWD |
| B 4204 T28, B 4204 T57 | Petrol/Electric | 405 | 298 | T8 Hybrid AWD |
| B 4204 T52 | Petrol/Electric | 349 | 257 | T6 Plug-In Hybrid AWD |
| XC90 II (256) 06/2015 - | ||||
| Motor codes | Engine type | HP | kW | Type |
| B 4204 T27 | Petrol | 320 | 235 | T6 AWD |
| D 4204 T11 | Diesel | 224 | 165 | D5 AWD |
| B 4204 T35 | Petrol/Electro | 320 | 235 | T8 Hybrid AWD |
| D 4204 T14 | Diesel | 190 | 140 | D4 |
| D 4204 T6 | Diesel | 190 | 140 | D4 AWD |
| B 4204 T23 | Petrol | 254 | 187 | T5 AWD |
| D 4204 T23 | Diesel | 235 | 173 | D5 AWD |
| B 4204 T23 | Petrol | 249 | 183 | 2.0 T5 AWD |
| B 4204 T29 | Petrol | 310 | 228 | 2.0 T6 AWD |
| B 4204 T26 | Petrol | 250 | 184 | 2.0 T5 AWD |
| B 4204 T27 | Petrol | 334 | 246 | T6 Polestar AWD |
| D 420 T2 | Diesel/Electro | 235 | 173 | B5 Mild-Hybrid AWD |
| B 4204 T29P | Petrol | 326 | 240 | T6 Polestar AWD |
| B 4204 T26P | Petrol | 253 | 186 | T5 Polestar AWD |
| B 4204 T34 | Petrol/Electric | 390 | 287 | T8 Twin Engine AWD |
| B 4204 T34 | Petrol/Electric | 317 | 233 | T8 Hybrid Polestar AWD |
| D 4204 T23 | Diesel | 240 | 177 | D5 Polestar AWD |
| D 4204 T23 | Diesel | 239 | 176 | D5 DRIVe Polestar AWD |
| B 4204 T26 | Petrol | 239 | 176 | T5 Drive-E Polestar AWD |
| B 4204 T23 | Petrol | 261 | 192 | T5 Drive-E Polestar AWD |
| B 4204 T35 | Petrol/Electric | 334 | 246 | T8 Plug-in Hybrid Polestar AWD |
| B 420 T2 | Petrol/Electric | 250 | 184 | B5 Mild-Hybrid AWD |
| B 420 T | Petrol/Electric | 299 | 220 | B6 Mild-Hybrid AWD |
| B 4204 T39 | Petrol/Electric | 421 | 310 | T8 Hybrid Polestar AWD |
