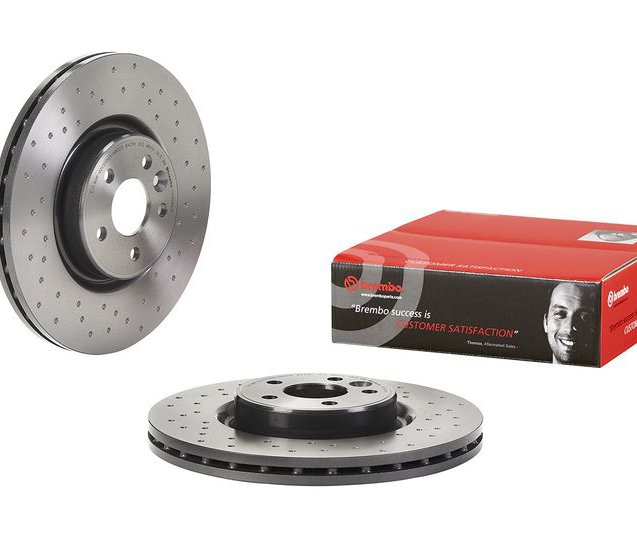

Brake Disc, BREMBO 09.9586.1X
- Delivery from 19/09
- Article number: 09.9586.1X
- Supplier name: BREMBO
- Description: Brake Disc
139.20 EUR (incl. VAT)

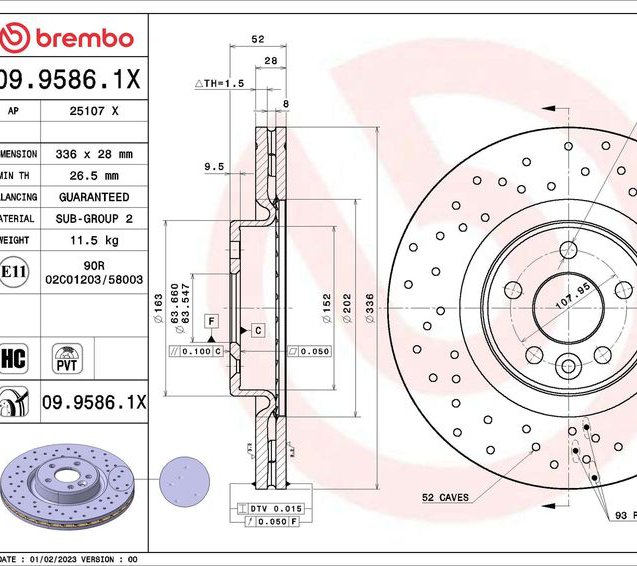

| Brake Disc Type | perforated/vented |
| Brake Disc Thickness [mm] | 28 mm |
| Number of Holes | 5 |
| Height [mm] | 52 mm |
| Centering Diameter [mm] | 63,7 mm |
| Outer Diameter [mm] | 336 mm |
| Machining | High-carbon |
| Surface | Coated |
| Minimum thickness [mm] | 26,5 mm |
| VOLVO | 30736313 |
| VOLVO | 307363130 |
| VOLVO | 30769057 |
| VOLVO | 307690570 |
| VOLVO | 31499996 |
| VOLVO | 314999960 |
| S60 II (134) 05/2012 - 12/2015 | ||||
| Motor codes | Engine type | HP | kW | Type |
| D 4162 T | Diesel | 114 | 84 | DRIVe / D2 |
| D 5244 T11, D 5244 T15 | Diesel | 215 | 158 | D5 |
| D 5244 T15 | Diesel | 215 | 158 | D5 AWD |
| B 4164 T2 | Petrol/Ethanol | 180 | 132 | T4F |
| B 4164 T3 | Petrol | 150 | 110 | T3 |
| B 4164 T | Petrol | 180 | 132 | T4 |
| B 4204 T6 | Petrol | 203 | 149 | 2.0 T |
| B 4204 T7 | Petrol | 240 | 177 | T5 |
| B 6304 T4 | Petrol | 304 | 224 | T6 AWD |
| D 5204 T2, D 5204 T3 | Diesel | 163 | 120 | D3 |
| D 5244 T10 | Diesel | 205 | 151 | D5 |
| D 5244 T10 | Diesel | 205 | 151 | D5 AWD |
| B 5254 T5 | Petrol | 253 | 186 | T5 |
| B 6304 T3, B 6304 T4 | Petrol | 329 | 242 | T6 AWD |
| D 5204 T7 | Diesel | 136 | 100 | D3 |
| D 5204 T3 | Diesel | 163 | 120 | D4 |
| B 4204 T9 | Petrol | 306 | 225 | T6 |
| B 4204 T11 | Petrol | 245 | 180 | T5 |
| D 4204 T5 | Diesel | 181 | 133 | D4 |
| B 5204 T8 | Petrol | 180 | 132 | 2.0 T |
| B 6304 T5 | Petrol | 351 | 258 | 3.0 T AWD |
| B 4204 T11 | Petrol | 245 | 180 | T5 AWD |
| D 5244 T15 | Diesel | 230 | 169 | D5 |
| D 5244 T15 | Diesel | 230 | 169 | D5 AWD |
| D 4204 T20, D 4204 T8 | Diesel | 120 | 88 | 2.0 D2 |
| D 4204 T4, D 4204 T9 | Diesel | 150 | 110 | 2.0 D3 |
| D 4204 T14 | Diesel | 190 | 140 | 2.0 D4 |
| D 5244 T21 | Diesel | 190 | 140 | 2.4 D4 AWD |
| D 4204 T11 | Diesel | 224 | 165 | 2.0 D5 |
| B 4154 T4 | Petrol | 152 | 112 | 1.5 T3 |
| B 4204 T37 | Petrol | 152 | 112 | 2.0 T3 |
| B 4204 T19 | Petrol | 190 | 140 | 2.0 T4 |
| B 5254 T12 | Petrol | 254 | 187 | T5 AWD |
| B 4204 T9 | Petrol | 306 | 225 | T6 AWD |
| B 4154 T5 | Petrol | 122 | 90 | 1.5 T2 |
| B 4204 T43 | Petrol | 367 | 270 | 2.0 Polestar AWD |
| B 4204 T7 | Petrol | 245 | 180 | T5 DRIVe |
| D 4204 T14 | Diesel | 200 | 147 | D4 Drive-E Polestar |
| D 4204 T11 | Diesel | 232 | 171 | D5 Drive-E Polestar |
| B 5254 T14 | Petrol | 249 | 183 | 2.5 T |
| S60 II Cross Country (134) 03/2015 - 12/2018 | ||||
| Motor codes | Engine type | HP | kW | Type |
| D 4204 T4, D 4204 T9 | Diesel | 150 | 110 | D3 |
| D 4204 T14 | Diesel | 190 | 140 | D4 |
| D 5244 T21 | Diesel | 190 | 140 | D4 AWD |
| D 4204 T14 | Diesel | 200 | 147 | D4 Drive-E Polestar |
| S80 II (124) 01/2008 - 09/2012 | ||||
| Motor codes | Engine type | HP | kW | Type |
| B 4164 T | Petrol | 180 | 132 | T4 |
| B 4204 T7 | Petrol | 241 | 177 | T5 |
| B 6304 T4 | Petrol | 305 | 224 | T6 AWD |
| D 5204 T2, D 5204 T3 | Diesel | 163 | 120 | D3 / D4 |
| B 6324 S5 | Petrol | 243 | 179 | 3.2 AWD |
| B 6324 S5 | Petrol | 243 | 179 | 3.2 |
| D 4162 T | Diesel | 114 | 84 | 1.6 DRIVe |
| D 5244 T15 | Diesel | 215 | 158 | D5 AWD |
| D 5244 T11, D 5244 T15 | Diesel | 215 | 158 | D5 |
| B 4164 T2 | Petrol/Ethanol | 180 | 132 | T4F |
| D 5244 T4 | Diesel | 185 | 136 | D5 |
| B 8444 S | Petrol | 316 | 232 | 4.4 V8 AWD |
| B 5254 T6 | Petrol | 200 | 147 | 2.5 T |
| B 6324 S | Petrol | 238 | 175 | 3.2 |
| D 5244 T, D 5244 T5 | Diesel | 163 | 120 | 2.4 D |
| B 6324 S | Petrol | 238 | 175 | 3.2 AWD |
| B 6304 T2 | Petrol | 286 | 210 | T6 AWD |
| D 5244 T4 | Diesel | 185 | 136 | D5 AWD |
| B 5254 T8 | Petrol/Ethanol | 200 | 147 | 2.5 T FlexFuel |
| B 4204 S4 | Petrol/Ethanol | 146 | 107 | 2.0 FlexFuel |
| D 4204 T | Diesel | 136 | 100 | 2.0 TDi |
| D 5204 T7 | Diesel | 136 | 100 | D3 |
| B 5254 T11 | Petrol/Ethanol | 231 | 170 | 2.5 T FlexFuel |
| D 5244 T14 | Diesel | 175 | 129 | 2.4 D |
| D 5244 T10 | Diesel | 205 | 151 | D5 |
| D 5244 T10 | Diesel | 205 | 151 | D5 AWD |
| D 4164 T | Diesel | 109 | 80 | 1.6 D DRIVe |
| B 5254 T10 | Petrol | 231 | 170 | 2.5 T |
| B 4204 T6 | Petrol | 203 | 149 | 2.0 T |
| B 4204 S3 | Petrol | 146 | 107 | 2.0 |
| D 4204 T5 | Diesel | 181 | 133 | D4 |
| B 4204 T11 | Petrol | 245 | 180 | T5 |
| B 4204 T11 | Petrol | 245 | 180 | 2.0 Drive- E |
| B 5254 T14 | Petrol | 249 | 183 | 2.5 T |
| B 5254 T12 | Petrol | 254 | 187 | 2.5 T |
| B 4204 T15 | Petrol | 220 | 162 | 2.0 T5 |
| V60 (155, 157) 05/2012 - 12/2015 | ||||
| Motor codes | Engine type | HP | kW | Type |
| B 4204 T6 | Petrol | 203 | 149 | 2.0 T |
| D 5204 T2, D 5204 T3 | Diesel | 163 | 120 | D3 / D4 |
| D 5244 T10 | Diesel | 205 | 151 | D5 |
| D 5244 T10 | Diesel | 205 | 151 | D5 AWD |
| B 4164 T3 | Petrol | 150 | 110 | T3 |
| B 4164 T | Petrol | 180 | 132 | T4 |
| B 4204 T7 | Petrol | 241 | 177 | T5 |
| B 6304 T4 | Petrol | 305 | 224 | T6 AWD |
| D 4162 T | Diesel | 114 | 84 | 1.6 DRIVe |
| D 5244 T11, D 5244 T15 | Diesel | 215 | 158 | 2.4 D5 |
| D 5244 T15 | Diesel | 215 | 158 | 2.4 D5 AWD |
| B 4164 T2 | Petrol/Ethanol | 180 | 132 | T4F |
| D82PHEV | Diesel/Electro | 215 | 158 | 2.4 Hybrid D6 AWD |
| D 5204 T7 | Diesel | 136 | 100 | D3 |
| D 5244 T17 | Diesel | 163 | 120 | D4 AWD |
| D 4204 T5 | Diesel | 181 | 133 | D4 |
| D 5244 T12 | Diesel | 181 | 133 | D4 AWD |
| B 4204 T11 | Petrol | 245 | 180 | T5 |
| B 4204 T9 | Petrol | 306 | 225 | T6 |
| B 5204 T9 | Petrol | 214 | 157 | T5 |
| B 4204 T7 | Petrol | 240 | 176 | T5 |
| B 6304 T3, B 6304 T4 | Petrol | 329 | 242 | T6 AWD |
| D 5244 T23 | Diesel | 230 | 169 | D5 |
| D 5244 T15 | Diesel | 230 | 169 | D5 AWD |
| D 4204 T20, D 4204 T8 | Diesel | 120 | 88 | 2.0 D2 |
| D 4204 T4, D 4204 T9 | Diesel | 150 | 110 | 2.0 D3 |
| D 4204 T14 | Diesel | 190 | 140 | 2.0 D4 |
| D 5244 T21 | Diesel | 190 | 140 | D4 AWD |
| D 4204 T11 | Diesel | 224 | 165 | D5 |
| D97PHEV | Diesel/Electro | 220 | 162 | D6 Hybrid AWD |
| B 4154 T4 | Petrol | 152 | 112 | T3 |
| B 4204 T37 | Petrol | 152 | 112 | T3 |
| B 4204 T19 | Petrol | 190 | 140 | 2.0 T4 |
| D87PHEV | Diesel/Electro | 163 | 120 | 2.4 D5 Hybrid AWD |
| B 5254 T12 | Petrol | 254 | 187 | T5 AWD |
| B 4204 T9 | Petrol | 306 | 225 | T6 AWD |
| B 4154 T5 | Petrol | 122 | 90 | 1.5 T2 |
| B 4204 T43 | Petrol | 367 | 270 | 2.0 Polestar AWD |
| B 4204 T15 | Petrol | 220 | 162 | 2.0 T5 |
| B 5204 T8 | Petrol | 180 | 132 | 2.0 T |
| V70 III (135) 10/2007 - 12/2011 | ||||
| Motor codes | Engine type | HP | kW | Type |
| B 4164 T | Petrol | 180 | 132 | T4 |
| B 4204 T7 | Petrol | 241 | 177 | T5 |
| D 5204 T2, D 5204 T3 | Diesel | 163 | 120 | D3 / D4 |
| D 4162 T | Diesel | 114 | 84 | 1.6 DRIVe / D2 |
| D 5244 T11, D 5244 T15 | Diesel | 215 | 158 | D5 |
| D 5244 T15 | Diesel | 215 | 158 | D5 AWD |
| B 6324 S5 | Petrol | 243 | 179 | 3.2 |
| B 4164 T2 | Petrol/Ethanol | 180 | 132 | 1.6 T4F |
| B 6324 S5 | Petrol | 243 | 179 | 3.2 AWD |
| B 6304 T4 | Petrol | 305 | 224 | T6 AWD |
| B 5254 T6 | Petrol | 200 | 147 | 2.5 T |
| B 6324 S | Petrol | 238 | 175 | 3.2 AWD |
| B 6304 T2 | Petrol | 286 | 210 | T6 AWD |
| D 5244 T5 | Diesel | 163 | 120 | 2.4 D |
| D 5244 T4 | Diesel | 185 | 136 | D5 |
| B 4204 S3 | Petrol | 145 | 107 | 2.0 |
| B 6324 S | Petrol | 238 | 175 | 3.2 |
| D 4204 T | Diesel | 136 | 100 | 2.0 D |
| D 5244 T4 | Diesel | 185 | 136 | D5 AWD |
| B 5254 T8 | Petrol/Ethanol | 200 | 147 | 2.5 T FlexiFuel |
| B 4204 S4 | Petrol/Ethanol | 146 | 107 | 2.0 FlexiFuel |
| D 5244 T14 | Diesel | 175 | 129 | 2.4 D |
| B 5254 T11 | Petrol/Ethanol | 231 | 170 | 2.5 T FlexiFuel |
| D 5244 T10 | Diesel | 205 | 151 | D5 |
| D 5244 T10 | Diesel | 205 | 151 | D5 AWD |
| D 4164 T | Diesel | 109 | 80 | 1.6 D |
| B 5254 T10 | Petrol | 231 | 170 | 2.5 T |
| B 4204 T6 | Petrol | 203 | 149 | 2.0 T |
| D 5244 T17 | Diesel | 163 | 120 | D4 AWD |
| D 5204 T7 | Diesel | 136 | 100 | D3 |
| D 4204 T5 | Diesel | 181 | 133 | D4 |
| D 5244 T12 | Diesel | 181 | 133 | D4 AWD |
| B 4204 T11 | Petrol | 245 | 180 | T5 |
| D 4204 T20 | Diesel | 120 | 88 | D2 |
| D 4204 T9 | Diesel | 150 | 110 | D3 |
| B 4204 T19 | Petrol | 190 | 140 | T4 |
| B 5204 T9 | Petrol | 214 | 157 | 2.0 GDI |
| D 5244 T15 | Diesel | 230 | 169 | D5 AWD |
| B 6304 T4 | Petrol | 329 | 242 | T6 AWD |
| Diesel | 230 | 169 | D5 | |
| V70 III Estate Van (135) 09/2013 - 12/2015 | ||||
| Motor codes | Engine type | HP | kW | Type |
| D 5244 T11, D 5244 T15 | Diesel | 215 | 158 | 2.4 D5 |
| D 5244 T17 | Diesel | 163 | 120 | 2.4 D4 AWD |
| D 5204 T7 | Diesel | 136 | 100 | 2.0 D3 DRIVe |
| XC70 II (136) 04/2010 - 12/2015 | ||||
| Motor codes | Engine type | HP | kW | Type |
| B 6324 S5 | Petrol | 243 | 179 | 3.2 AWD |
| B 6304 T4 | Petrol | 304 | 224 | T6 AWD |
| D 5244 T11, D 5244 T15 | Diesel | 215 | 158 | D5 AWD |
| D 5204 T2, D 5204 T3 | Diesel | 163 | 120 | D3 |
| B 6324 S | Petrol | 238 | 175 | 3.2 AWD |
| D 5244 T4 | Diesel | 185 | 136 | D5 AWD |
| D 5244 T16, D 5244 T17, D 5244 T5 | Diesel | 163 | 120 | 2.4 D / D4 AWD |
| B 6304 T2 | Petrol | 286 | 210 | T6 AWD |
| D 5244 T10 | Diesel | 205 | 151 | D5 AWD |
| D 5244 T14 | Diesel | 175 | 129 | 2.4 D |
| D 5244 T12 | Diesel | 181 | 133 | D4 AWD |
| D 4204 T5 | Diesel | 181 | 133 | D4 |
| B 4204 T11 | Petrol | 245 | 180 | T5 |
| D 5244 T20 | Diesel | 220 | 162 | D5 AWD |
| B 5254 T12 | Petrol | 254 | 187 | T5 AWD |
| D 5244 T15 | Diesel | 230 | 169 | D5 AWD |
| B 6304 T4 | Petrol | 329 | 242 | T6 Polestar AWD |
| XC70 II VAN (136) 09/2013 - 12/2016 | ||||
| Motor codes | Engine type | HP | kW | Type |
| D 5204 T3 | Diesel | 163 | 120 | 2.0 D4 |
