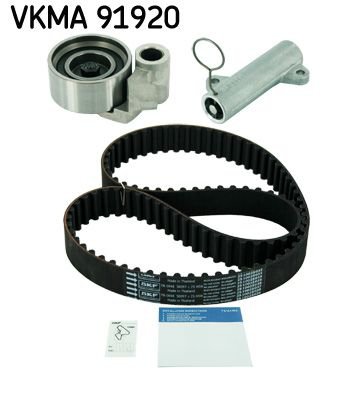

Timing Belt Kit, SKF VKMA 91920
- Delivery from 05/08
- Article number: VKMA 91920
- Supplier name: SKF
- Description: Timing Belt Kit
83.16 EUR (incl. VAT)
| Belt Width [mm] | 25 mm |
| Colour | Black |
| Supplementary Article/Info 2 | with tensioner pulley damper |
| Number of Teeth | 97 |
| Belts | with rounded tooth profile |
| TOYOTA | 13505-0L010 |
| TOYOTA | 13505-67040 |
| TOYOTA | 13505-67041 |
| TOYOTA | 13505-67042 |
| TOYOTA | 13540-0L010 |
| TOYOTA | 13540-30010 |
| TOYOTA | 13540-67010 |
| TOYOTA | 13540-67020 |
| TOYOTA | 13568-09130 |
| TOYOTA | 13568-09131 |
| TOYOTA | 13568-30010 |
| TOYOTA | 13568-39015 |
| TOYOTA | 13568-39016 |
| DYNA Platform/Chassis (KD_, LY_, _Y2_, _U3_, _U4_) 09/2006 - | ||||
| Motor codes | Engine type | HP | kW | Type |
| 1KD-FTV | Diesel | 144 | 106 | 3.0 D4d (KDY22_, KDY23_, KDY25_, KDY26_) |
| 1KD-FTV | Diesel | 136 | 100 | 3.0 D4d |
| 2KD-FTV | Diesel | 88 | 65 | 2.5 D4d (KDY220_, KDY230_) |
| 2KD-FTV | Diesel | 102 | 75 | 2.5 D4d |
| 1KD-FTV | Diesel | 109 | 80 | 3.0 D4d (KDY261_, KDY251_, KDY231_, KDY221_) |
| HIACE / COMMUTER V Bus (TRH2__, KDH2__, LH2__, GDH2__) 09/2006 - | ||||
| Motor codes | Engine type | HP | kW | Type |
| 2KD-FTV | Diesel | 102 | 75 | 2.5 D-4D (KDH202) |
| HIACE IV Box (LXH1_, RZH1_, LH1_) 08/1995 - 02/2005 | ||||
| Motor codes | Engine type | HP | kW | Type |
| 2KD-FTV | Diesel | 88 | 65 | 2.5 D-4D (KLH12_, KLH22_) |
| 2KD-FTV | Diesel | 102 | 75 | 2.5 D-4D (KLH12_, KLH22_) |
| 2KD-FTV | Diesel | 102 | 75 | 2.5 D-4D 4WD (KLH18_, KLH28) |
| 2KD-FTV | Diesel | 88 | 65 | 2.5 D-4D 4WD (KLH18, KLH28) |
| 2KD-FTV | Diesel | 117 | 86 | 2.5 D-4D (KLH12_, KLH22_) |
| 2KD-FTV | Diesel | 117 | 86 | 2.5 D-4D 4WD (KLH28_, KLH18_) |
| 2KD-FTV | Diesel | 95 | 70 | 2.5 D-4D (KLH12_, KLH22_) |
| HIACE IV Bus (_H1_, _H2_) 08/1995 - 04/1998 | ||||
| Motor codes | Engine type | HP | kW | Type |
| 2KD-FTV | Diesel | 88 | 65 | 2.5 D-4D (KLH12_) |
| 2KD-FTV | Diesel | 102 | 75 | 2.5 D-4D (KLH12_, KLH22_) |
| 2KD-FTV | Diesel | 95 | 70 | 2.5 D-4D (KLH12_, KLH22_) |
| 2KD-FTV | Diesel | 117 | 86 | 2.5 D-4D (KLH12_, KLH22_) |
| 2KD-FTV | Diesel | 117 | 86 | 2.5 D-4D 4WD (KLH18_) |
| 2KD-FTV | Diesel | 102 | 75 | 2.5 D-4D 4WD (KLH18_) |
| HIACE V Box (TRH2_, KDH2_) 09/2006 - | ||||
| Motor codes | Engine type | HP | kW | Type |
| 1KD-FTV | Diesel | 136 | 100 | 3.0 D (KDH221, KDH201) |
| 2KD-FTV | Diesel | 102 | 75 | 2.5 D-4D (KDH20_, KDH21_, KDH22_, KDH200, KDH220) |
| 1KD-FTV | Diesel | 144 | 106 | 3.0 D (KDH201, KDH203, KDH221) |
| 2KD-FTV | Diesel | 95 | 70 | 2.5 D-4D |
| 2KD-FTV | Diesel | 117 | 86 | 2.5 D-4D (KDH200, KDH202, KDH212, KDH222) |
| HILUX (VIGO) VII Pickup (_N1_, _N2_, _N3_) 10/2005 - | ||||
| Motor codes | Engine type | HP | kW | Type |
| 2KD-FTV | Diesel | 144 | 106 | 2.5 D-4D |
| 2KD-FTV | Diesel | 102 | 75 | 2.5 D 4WD (KUN25_) |
| 2KD-FTV | Diesel | 120 | 88 | 2.5 D-4D 4WD (KUN25_) |
| 2KD-FTV | Diesel | 120 | 88 | 2.5 D-4D (KUN15_) |
| 1KD-FTV | Diesel | 171 | 126 | 3.0 D-4D 4WD (KUN26) |
| 2KD-FTV | Diesel | 102 | 75 | 2.5 D-4D (KUN15_, KUN25_, KUN35_) |
| 1KD-FTV | Diesel | 163 | 120 | 3.0 D-4D 4WD (KUN26) |
| 2KD-FTV | Diesel | 144 | 106 | 2.5 D-4D 4WD |
| 1KD-FTV | Diesel | 197 | 145 | 3.0 D-4D 4WD |
| HILUX VI Pickup (_N1_) 08/1997 - 10/2005 | ||||
| Motor codes | Engine type | HP | kW | Type |
| 2KD-FTV | Diesel | 88 | 65 | 2.5 D-4D (KDN14_, KDN15_, KDN16_, KDN19_) |
| 2KD-FTV | Diesel | 102 | 75 | 2.5 D-4D 4WD (KDN165_, KDN170_, KDN190_) |
| LAND CRUISER 90 (_J9_) 03/1996 - 12/2002 | ||||
| Motor codes | Engine type | HP | kW | Type |
| 1KD-FTV | Diesel | 163 | 120 | 3.0 D-4D 4WD (KDJ90_, KDJ95_) |
| LAND CRUISER PRADO (_J12_) 09/2002 - 07/2009 | ||||
| Motor codes | Engine type | HP | kW | Type |
| 1KD-FTV | Diesel | 163 | 120 | 3.0 D-4D (KDJ120, KDJ150, KDJ125) |
| 1KD-FTV | Diesel | 166 | 122 | 3.0 D-4D (KDJ120) |
| 1KD-FTV | Diesel | 173 | 127 | 3.0 D-4D (KDJ120, KDJ125) |
| LAND CRUISER PRADO (_J15_) 08/2009 - | ||||
| Motor codes | Engine type | HP | kW | Type |
| 1KD-FTV | Diesel | 190 | 140 | 3.0 D-4D (KDJ155_, KDJ150_) |
| 1KD-FTV | Diesel | 173 | 127 | 3.0 D-4D (KDJ150_) |
| LAND CRUISER VAN (_J15_) 01/2011 - | ||||
| Motor codes | Engine type | HP | kW | Type |
| 1KD-FTV | Diesel | 190 | 140 | 3.0 D4d 4WD (KDJ155, KDJ150) |
