Alternator, BOSCH 0 986 084 130
- Delivery from 14/08
- Article number: 0 986 084 130
- Supplier name: BOSCH
- Description: Alternator
286.37 EUR
272.05 EUR (incl. VAT)

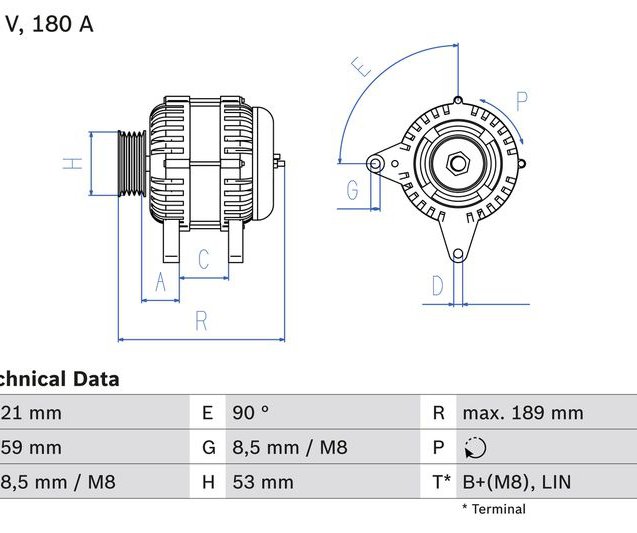

| Voltage [V] | 14 V |
| Alternator Charge Current [A] | 180 A |
| Fastening Type | Double Pivot Lever |
| Alternator type | excl. vacuum pump |
| Distance from belt pulley to alternator [mm] | 21 mm |
| Rotation Direction | Clockwise rotation |
| Pulleys | with freewheel belt pulley |
| Number of grooves | 6 |
| Belt Pulley Ø [mm] | 53 mm |
| Clamp | B+(M8),LIN |
| Plug Type ID | PL166 |
| Length [mm] | 189 mm |
| Recommended additional repairs | V-Belt/V-Ribbed Belt |
| AUDI | 04E 903 015 E |
| AUDI | 04E 903 021 P |
| SEAT | 04E 903 015 E |
| SKODA | 04E 903 015 E |
| SKODA | 04E 903 021 P |
| SKODA | 04E 903 023 L |
| VW | 04E 903 015 E |
| VW | 04E 903 021 P |
| VW | 04E 903 021 PX |
| VW | 04E 903 023 L |
| A3 (8V1, 8VK) 01/2013 - | ||||
| Motor codes | Engine type | HP | kW | Type |
| CMBA, CXSA | Petrol | 122 | 90 | 1.4 TFSI |
| CPTA | Petrol | 140 | 103 | 1.4 TFSI |
| CYVB | Petrol | 110 | 81 | 1.2 TFSI |
| CZEA | Petrol | 150 | 110 | 1.4 TSI |
| CHZD | Petrol | 115 | 85 | 1.0 TFSI |
| DADA | Petrol | 150 | 110 | 1.5 TFSI |
| A3 Convertible (8V7, 8VE) 10/2013 - | ||||
| Motor codes | Engine type | HP | kW | Type |
| DADA | Petrol | 150 | 110 | 1.5 TFSI |
| DADA, DPCA | Petrol | 150 | 110 | 35 TFSI |
| A3 Limousine (8VS, 8VM) 05/2013 - | ||||
| Motor codes | Engine type | HP | kW | Type |
| CXSA | Petrol | 122 | 90 | 1.4 TFSI |
| CPTA | Petrol | 140 | 103 | 1.4 TFSI |
| CYVB | Petrol | 110 | 81 | 1.2 TFSI |
| CZEA | Petrol | 150 | 110 | 1.4 TSI |
| CHZD | Petrol | 115 | 85 | 1.0 TFSI |
| DADA | Petrol | 150 | 110 | 1.5 TFSI |
| DKRF | Petrol | 115 | 85 | 30 TFSI |
| DADA, DPCA | Petrol | 150 | 110 | 35 TFSI |
| A3 Sportback (8VA, 8VF) 05/2013 - | ||||
| Motor codes | Engine type | HP | kW | Type |
| CMBA, CXSA | Petrol | 122 | 90 | 1.4 TFSI |
| CPTA | Petrol | 140 | 103 | 1.4 TFSI |
| CPWA | Petrol/Natural Gas (CNG) | 110 | 81 | 1.4 TFSI g-tron |
| CYVB | Petrol | 110 | 81 | 1.2 TFSI |
| CZEA | Petrol | 150 | 110 | 1.4 TSI |
| CHZD | Petrol | 115 | 85 | 1.0 TFSI |
| DADA | Petrol | 150 | 110 | 1.5 TFSI |
| DKRF | Petrol | 116 | 85 | 30 TFSI |
| DADA, DPCA | Petrol | 150 | 110 | 35 TFSI |
| KAROQ (NU7) 07/2017 - | ||||
| Motor codes | Engine type | HP | kW | Type |
| CHZJ | Petrol | 115 | 85 | 1.0 TSI |
| DADA | Petrol | 150 | 110 | 1.5 TSI |
| DADA, DPCA | Petrol | 150 | 110 | 1.5 TSI 4x4 |
| CZEA, DJKA | Petrol | 150 | 110 | 1.4 TSI |
| DLAA | Petrol | 110 | 81 | 1.0 TSI |
| KODIAQ (NS7) 10/2016 - | ||||
| Motor codes | Engine type | HP | kW | Type |
| CZCA | Petrol | 125 | 92 | 1.4 TSI |
| CZDA, CZEA | Petrol | 150 | 110 | 1.4 TSI 4x4 |
| CZDA, CZEA | Petrol | 150 | 110 | 1.4 TSI |
| OCTAVIA III (5E3, NL3, NR3) 11/2012 - | ||||
| Motor codes | Engine type | HP | kW | Type |
| CHPA | Petrol | 140 | 103 | 1.4 TSI |
| CJZB, CYVA | Petrol | 86 | 63 | 1.2 TSI |
| CJZA | Petrol | 105 | 77 | 1.2 TSI |
| CPWA | Petrol/Natural Gas (CNG) | 110 | 81 | 1.4 TSI G-TEC |
| CHPB, CZDA | Petrol | 150 | 110 | 1.4 TSI |
| CHZD, DKRA | Petrol | 115 | 85 | 1.0 TSI |
| DADA | Petrol | 150 | 110 | 1.5 TSI |
| OCTAVIA III Combi (5E5) 11/2012 - | ||||
| Motor codes | Engine type | HP | kW | Type |
| CJZB, CYVA | Petrol | 86 | 63 | 1.2 TSI |
| CJZA | Petrol | 105 | 77 | 1.2 TSI |
| CHPA | Petrol | 140 | 103 | 1.4 TSI |
| CPWA | Petrol/Natural Gas (CNG) | 110 | 81 | 1.4 TSI G-TEC |
| CHPB, CZDA | Petrol | 150 | 110 | 1.4 TSI |
| CHZD, DKRA | Petrol | 115 | 85 | 1.0 TSI |
| DADA | Petrol | 150 | 110 | 1.5 TSI |
| DHFA | Petrol/Compressed Natural Gas (CNG) | 130 | 96 | 1.5 TSI G-TEC |
| SUPERB III (3V3) 03/2015 - | ||||
| Motor codes | Engine type | HP | kW | Type |
| CZDA, CZEA | Petrol | 150 | 110 | 1.4 TSI |
| CZCA | Petrol | 125 | 92 | 1.4 TSI |
| CZEA | Petrol | 150 | 110 | 1.4 TSI 4x4 |
| DADA, DPCA | Petrol | 150 | 110 | 1.5 TSI |
| SUPERB III Estate (3V5) 03/2015 - | ||||
| Motor codes | Engine type | HP | kW | Type |
| CZCA | Petrol | 125 | 92 | 1.4 TSI |
| CZDA, CZEA | Petrol | 150 | 110 | 1.4 TSI |
| CZEA | Petrol | 150 | 110 | 1.4 TSI 4x4 |
| DADA, DPCA | Petrol | 150 | 110 | 1.5 TSi |
| YETI (5L) 11/2009 - 12/2017 | ||||
| Motor codes | Engine type | HP | kW | Type |
| CYVB | Petrol | 110 | 81 | 1.2 TSI |
| CZCA | Petrol | 125 | 92 | 1.4 TSI |
| CZDA | Petrol | 150 | 110 | 1.4 TSI 4x4 |
| ARTEON (3H7) 04/2017 - | ||||
| Motor codes | Engine type | HP | kW | Type |
| CZPB | Petrol | 190 | 140 | 2.0 TSI |
| DADA | Petrol | 150 | 110 | 1.5 TSi |
| CADDY ALLTRACK Box (SAA) 05/2015 - | ||||
| Motor codes | Engine type | HP | kW | Type |
| CHZG | Petrol | 102 | 75 | 1.0 TSI |
| CYVC | Petrol | 84 | 62 | 1.2 TSI |
| CPWA | Petrol/Natural Gas (CNG) | 110 | 81 | 1.4 TGI CNG |
| CZCB | Petrol | 125 | 92 | 1.4 TSI |
| DJKD | Petrol | 131 | 96 | 1.4 TSI |
| CADDY ALLTRACK Estate (SAB) 05/2015 - | ||||
| Motor codes | Engine type | HP | kW | Type |
| CHZG | Petrol | 102 | 75 | 1.0 TSI |
| CYVC | Petrol | 84 | 62 | 1.2 TSI |
| CPWA | Petrol/Natural Gas (CNG) | 110 | 81 | 1.4 TGI CNG |
| CZCB | Petrol | 125 | 92 | 1.4 TSI |
| DJKD | Petrol | 131 | 96 | 1.4 TSI |
| DKRD | Petrol | 84 | 62 | 1.0 TSI |
| CADDY IV Box (SAA, SAH) 05/2015 - | ||||
| Motor codes | Engine type | HP | kW | Type |
| CYVC | Petrol | 84 | 62 | 1.2 TSI |
| CPWA | Petrol/Natural Gas (CNG) | 110 | 81 | 1.4 TGI CNG |
| CZCB | Petrol | 125 | 92 | 1.4 TSI |
| CHZG | Petrol | 102 | 75 | 1.0 TSI |
| DJKD | Petrol | 131 | 96 | 1.4 TSI |
| CADDY IV Estate (SAB, SAJ) 05/2015 - | ||||
| Motor codes | Engine type | HP | kW | Type |
| CYVC | Petrol | 84 | 62 | 1.2 TSI |
| CPWA | Petrol/Natural Gas (CNG) | 110 | 81 | 1.4 TGI CNG |
| CZCB | Petrol | 125 | 92 | 1.4 TSI |
| CHZG | Petrol | 102 | 75 | 1.0 TSI |
| DJKD | Petrol | 131 | 96 | 1.4 TSI |
| DKRD | Petrol | 84 | 62 | 1.0 TSI |
| CC (358) 11/2011 - 12/2016 | ||||
| Motor codes | Engine type | HP | kW | Type |
| CZDA | Petrol | 150 | 110 | 1.4 TSI |
| GOLF SPORTSVAN (AM1) 05/2014 - | ||||
| Motor codes | Engine type | HP | kW | Type |
| CZDA | Petrol | 150 | 110 | 1.4 TSI |
| CYVB | Petrol | 110 | 81 | 1.2 TSI |
| CPVB, CZCA | Petrol | 125 | 92 | 1.4 TSI |
| CYVA | Petrol | 86 | 63 | 1.2 TSI |
| CPVB | Petrol/Ethanol | 125 | 92 | 1.4 TSI MultiFuel |
| CHZD | Petrol | 115 | 85 | 1.0 TSI |
| CHZK | Petrol | 86 | 63 | 1.0 TSI |
| CHZC | Petrol | 110 | 81 | 1.0 TSI |
| DADA | Petrol | 150 | 110 | 1.5 TSI |
| DACA | Petrol | 130 | 96 | 1.5 TSI |
| GOLF VII (5G1, BQ1, BE1, BE2) 11/2012 - | ||||
| Motor codes | Engine type | HP | kW | Type |
| CPWA | Petrol/Natural Gas (CNG) | 110 | 81 | 1.4 TGI CNG |
| CJZB, CYVA | Petrol | 86 | 63 | 1.2 TSI |
| CHPA, CPTA | Petrol | 140 | 103 | 1.4 TSI |
| CJZA | Petrol | 105 | 77 | 1.2 TSI |
| CMBA, CPVA, CXSA | Petrol | 122 | 90 | 1.4 TSI |
| CPVA | Petrol/Ethanol | 122 | 90 | 1.4 TSI MultiFuel |
| CYVB | Petrol | 110 | 81 | 1.2 TSI |
| CPVB, CZCA | Petrol | 125 | 92 | 1.4 TSI |
| CZDA, CZEA | Petrol | 150 | 110 | 1.4 TSI |
| CPVB | Petrol/Ethanol | 125 | 92 | 1.4 TSI MultiFuel |
| CHZD | Petrol | 115 | 85 | 1.0 TSI |
| CHZC | Petrol | 110 | 81 | 1.0 TSI |
| CHZK | Petrol | 86 | 63 | 1.0 TSI |
| DADA | Petrol | 150 | 110 | 1.5 TSI |
| DACA | Petrol | 130 | 96 | 1.5 TSI |
| DHFA | Petrol/Compressed Natural Gas (CNG) | 130 | 96 | 1.5 TGI |
| GOLF VII Estate (BA5, BV5) 05/2013 - | ||||
| Motor codes | Engine type | HP | kW | Type |
| CHPA | Petrol | 140 | 103 | 1.4 TSI |
| CPWA | Petrol/Natural Gas (CNG) | 110 | 81 | 1.4 TGI CNG |
| CJZB, CYVA | Petrol | 86 | 63 | 1.2 TSI |
| CJZA | Petrol | 105 | 77 | 1.2 TSI |
| CPVA, CXSA | Petrol | 122 | 90 | 1.4 TSI |
| CPVA | Petrol/Ethanol | 122 | 90 | 1.4 TSI MultiFuel |
| CYVB | Petrol | 110 | 81 | 1.2 TSI |
| CPVB, CZCA, CZDD | Petrol | 125 | 92 | 1.4 TSI |
| CHPB, CZDA | Petrol | 150 | 110 | 1.4 TSI |
| CPVB | Petrol/Ethanol | 125 | 92 | 1.4 TSI MultiFuel |
| CHZD | Petrol | 115 | 85 | 1.0 TSI |
| CHZC | Petrol | 110 | 81 | 1.0 TSI |
| CHZK | Petrol | 86 | 63 | 1.0 TSI |
| DADA | Petrol | 150 | 110 | 1.5 TSI |
| DACA | Petrol | 130 | 96 | 1.5 TSI |
| DHFA | Petrol/Compressed Natural Gas (CNG) | 131 | 96 | 1.5 TGI |
| PASSAT (3G2) 11/2014 - | ||||
| Motor codes | Engine type | HP | kW | Type |
| CZDA, CZEA | Petrol | 150 | 110 | 1.4 TSI |
| CZCA | Petrol | 125 | 92 | 1.4 TSI |
| CZEA | Petrol | 150 | 110 | 1.4 TSI 4motion |
| DADA, DPCA | Petrol | 150 | 110 | 1.5 TSI |
| PASSAT ALLTRACK (3G5) 05/2015 - | ||||
| Motor codes | Engine type | HP | kW | Type |
| CZEA | Petrol | 150 | 110 | 1.4 TSI 4motion |
| PASSAT Estate (3G5) 11/2014 - | ||||
| Motor codes | Engine type | HP | kW | Type |
| CZDA, CZEA | Petrol | 150 | 110 | 1.4 TSI |
| CZCA | Petrol | 125 | 92 | 1.4 TSI |
| CZEA | Petrol | 150 | 110 | 1.4 TSI 4motion |
| DADA, DPCA | Petrol | 150 | 110 | 1.5 TSI |
| SHARAN (7N1, 7N2) 12/2010 - | ||||
| Motor codes | Engine type | HP | kW | Type |
| CZDA | Petrol | 150 | 110 | 1.4 TSI |
| T-ROC (A11) 09/2017 - | ||||
| Motor codes | Engine type | HP | kW | Type |
| CHZJ | Petrol | 115 | 85 | 1.0 TSI |
| DADA | Petrol | 150 | 110 | 1.5 TSI |
| DADA, DPCA | Petrol | 150 | 110 | 1.5 TSI 4motion |
| TIGUAN (AD1) 01/2016 - | ||||
| Motor codes | Engine type | HP | kW | Type |
| CZCA | Petrol | 125 | 92 | 1.4 TSI |
| CZDA, CZEA, DJVA | Petrol | 150 | 110 | 1.4 TSI |
| CZDA, CZEA | Petrol | 150 | 110 | 1.4 TSI 4motion |
| DADA, DPCA, DXDB | Petrol | 150 | 110 | 1.5 TSI |
| DACB, DPBE | Petrol | 131 | 96 | 1.5 TSI |
| TIGUAN ALLSPACE (BW2) 06/2017 - | ||||
| Motor codes | Engine type | HP | kW | Type |
| CZDA, CZEA | Petrol | 150 | 110 | 1.4 TSI |
| CWLA | Petrol/Ethanol | 150 | 110 | 1.4 TSI E100 |
| TOURAN (5T1) 05/2015 - | ||||
| Motor codes | Engine type | HP | kW | Type |
| CYVB | Petrol | 110 | 81 | 1.2 TSI |
| CZDA | Petrol | 150 | 110 | 1.4 TSI |
| DADA, DPCA, DXDB | Petrol | 150 | 110 | 1.5 TSI |
