Alternator, BOSCH 0 986 082 580
- Delivery from 19/09
- Article number: 0 986 082 580
- Supplier name: BOSCH
- Description: Alternator
240.06 EUR (incl. VAT)

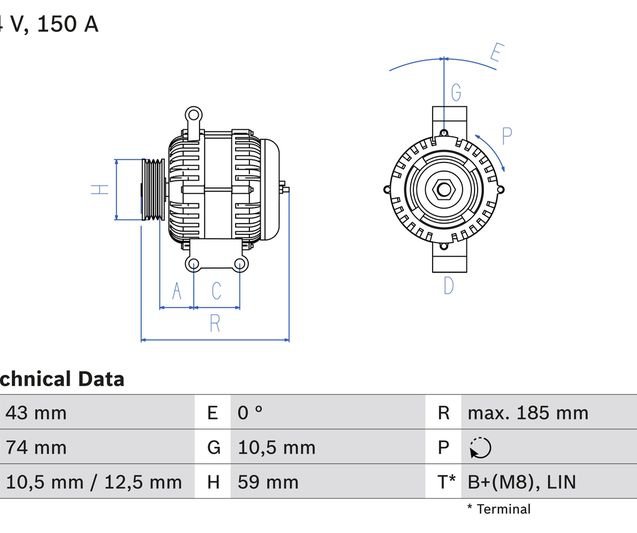

| Voltage [V] | 14 V |
| Alternator Charge Current [A] | 150 A |
| Fastening Type | Direct fastening |
| Alternator type | excl. vacuum pump |
| Distance from belt pulley to alternator [mm] | 43,3 mm |
| Rotation Direction | Clockwise rotation |
| Pulleys | with freewheel belt pulley |
| Number of grooves | 6 |
| Belt Pulley Ø [mm] | 58,5 mm |
| Length [mm] | 185 mm |
| Recommended additional repairs | V-Belt/V-Ribbed Belt |
| CITROËN | 96 749 875 80 |
| FIAT | K9674987580 |
| FIAT | 96 749 875 80 |
| FORD | CC1T 10300 BB |
| FORD | CC1T 10300 BC |
| FORD | CC1T 10300 BD |
| FORD | 1745661 |
| FORD | 1797966 |
| FORD | 1874992 |
| FORD | 2073243 |
| FORD | 2545291 |
| PEUGEOT | 96 749 875 80 |
| JUMPER Box 07/2011 - | ||||
| Motor codes | Engine type | HP | kW | Type |
| 4HG (P22DTE) | Diesel | 110 | 81 | 2.2 HDi 110 |
| 4HH (P22DTE) | Diesel | 130 | 96 | 2.2 HDi 130 |
| 4HJ (P22DTE) | Diesel | 150 | 110 | 2.2 HDi 150 |
| JUMPER Bus 07/2011 - | ||||
| Motor codes | Engine type | HP | kW | Type |
| 4HG (P22DTE) | Diesel | 110 | 81 | 2.2 HDi 110 |
| 4HH (P22DTE) | Diesel | 130 | 96 | 2.2 HDi 130 |
| 4HJ (P22DTE) | Diesel | 150 | 110 | 2.2 HDi 150 |
| JUMPER Platform/Chassis 07/2011 - | ||||
| Motor codes | Engine type | HP | kW | Type |
| 4HG (P22DTE) | Diesel | 110 | 81 | 2.2 HDi 110 |
| 4HH (P22DTE) | Diesel | 130 | 96 | 2.2 HDi 130 |
| 4HJ (P22DTE) | Diesel | 150 | 110 | 2.2 HDi 150 |
| TOURNEO CUSTOM Bus 04/2012 - | ||||
| Motor codes | Engine type | HP | kW | Type |
| DRF4, DRFF, DRFG | Diesel | 100 | 74 | 2.2 TDCi |
| CYF4, CYFF | Diesel | 125 | 92 | 2.2 TDCi |
| CVFF | Diesel | 155 | 114 | 2.2 TDCi |
| TRANSIT Box (FA_ _) 10/2011 - 08/2014 | ||||
| Motor codes | Engine type | HP | kW | Type |
| DRFA, DRFB, DRFC, DRFD, DRFE | Diesel | 100 | 74 | 2.2 TDCi |
| CYFA, CYFB, CYFC, CYFD | Diesel | 125 | 92 | 2.2 TDCi |
| PGFA, PGFB, UHFA, UHFB, UHFC | Diesel | 140 | 103 | 2.2 TDCi |
| TRANSIT Box 08/2013 - | ||||
| Motor codes | Engine type | HP | kW | Type |
| CVF5 | Diesel | 155 | 114 | 2.2 TDCi |
| CY14, CYF5, CYFG, USF6 | Diesel | 125 | 92 | 2.2 TDCi |
| DRF5, DRFF, DRFG | Diesel | 100 | 74 | 2.2 TDCi |
| TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) 10/2011 - 08/2014 | ||||
| Motor codes | Engine type | HP | kW | Type |
| DRFA, DRFB, DRFC, DRFD, DRFE | Diesel | 100 | 74 | 2.2 TDCi |
| CYFA, CYFB, CYFC, CYFD | Diesel | 125 | 92 | 2.2 TDCi |
| PGFA, PGFB, UHFA, UHFB, UHFC | Diesel | 140 | 103 | 2.2 TDCi |
| TRANSIT Bus 08/2013 - | ||||
| Motor codes | Engine type | HP | kW | Type |
| DRF5, DRFF, DRFG | Diesel | 100 | 74 | 2.2 TDCi |
| CY14, CYF5, CYFG | Diesel | 125 | 92 | 2.2 TDCi |
| CVF5 | Diesel | 155 | 114 | 2.2 TDCi |
| TRANSIT CUSTOM Box 04/2012 - | ||||
| Motor codes | Engine type | HP | kW | Type |
| DRF4, DRFF, DRFG | Diesel | 100 | 74 | 2.2 TDCi |
| CYF4, CYFF | Diesel | 125 | 92 | 2.2 TDCi |
| CVFF | Diesel | 155 | 114 | 2.2 TDCi |
| TRANSIT CUSTOM Bus 04/2012 - | ||||
| Motor codes | Engine type | HP | kW | Type |
| DRF4, DRFF, DRFG | Diesel | 100 | 74 | 2.2 TDCi |
| CYF4, CYFF | Diesel | 125 | 92 | 2.2 TDCi |
| CVFF | Diesel | 155 | 114 | 2.2 TDCi |
| TRANSIT Platform/Chassis (FM_ _, FN_ _) 10/2011 - 08/2014 | ||||
| Motor codes | Engine type | HP | kW | Type |
| DRFA, DRFB, DRFC, DRFD, DRFE | Diesel | 100 | 74 | 2.2 TDCi |
| CYFA, CYFB, CYFC, CYFD | Diesel | 125 | 92 | 2.2 TDCi |
| PGFA, PGFB, UHFA, UHFB, UHFC | Diesel | 140 | 103 | 2.2 TDCi |
| TRANSIT Platform/Chassis 08/2013 - | ||||
| Motor codes | Engine type | HP | kW | Type |
| DRF5, DRFF, DRFG | Diesel | 100 | 74 | 2.2 TDCi |
| CYF5 | Diesel | 125 | 92 | 2.2 TDCi |
| CVF5 | Diesel | 155 | 114 | 2.2 TDCi |
| TRANSIT TOURNEO 10/2007 - 08/2014 | ||||
| Motor codes | Engine type | HP | kW | Type |
| PGFA, PGFB, UHFA, UHFB, UHFC | Diesel | 140 | 103 | 2.2 TDCi |
| CYFA, CYFB | Diesel | 125 | 92 | 2.2 |
| BOXER Box 03/2011 - | ||||
| Motor codes | Engine type | HP | kW | Type |
| 4HG (P22DTE) | Diesel | 110 | 81 | 2.2 HDi 110 |
| 4HH (P22DTE) | Diesel | 131 | 96 | 2.2 HDi 130 |
| 4HJ (P22DTE) | Diesel | 150 | 110 | 2.2 HDi 150 |
| 4HH (P22DTE) | Diesel | 131 | 96 | 2.2 HDi 130 4x4 |
| 4HJ (P22DTE) | Diesel | 150 | 110 | 2.2 HDi 150 4x4 |
| BOXER Bus 03/2011 - | ||||
| Motor codes | Engine type | HP | kW | Type |
| 4HG (P22DTE) | Diesel | 110 | 81 | 2.2 HDi 110 |
| 4HH (P22DTE) | Diesel | 131 | 96 | 2.2 HDi 130 |
| 4HJ (P22DTE) | Diesel | 150 | 110 | 2.2 HDi 150 |
| BOXER Platform/Chassis 03/2011 - | ||||
| Motor codes | Engine type | HP | kW | Type |
| 4HG (P22DTE) | Diesel | 110 | 81 | 2.2 HDi 110 |
| 4HH (P22DTE) | Diesel | 131 | 96 | 2.2 HDi 130 |
| 4HJ (P22DTE) | Diesel | 150 | 110 | 2.2 HDi 150 |
| 4HH (P22DTE) | Diesel | 130 | 96 | 2.2 HDi 130 |
| 4HJ (P22DTE) | Diesel | 150 | 110 | 2.2 HDi 150 |
