Alternator, BOSCH 0 986 081 370
- Delivery from 19/09
- Article number: 0 986 081 370
- Supplier name: BOSCH
- Description: Alternator
278.29 EUR (incl. VAT)

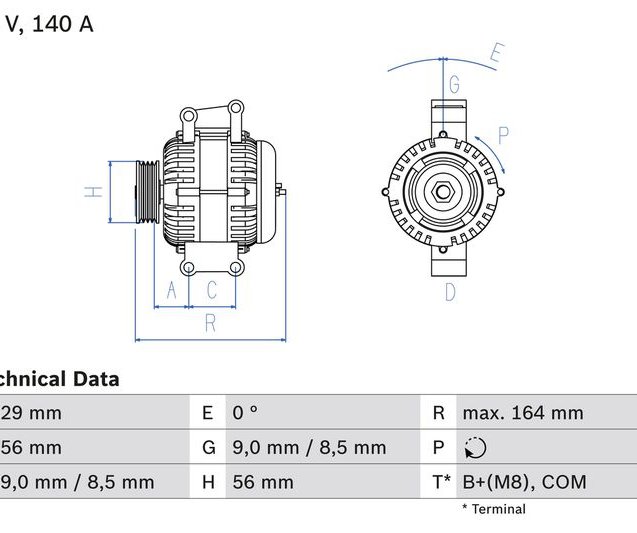

| Voltage [V] | 14 V |
| Alternator Charge Current [A] | 140 A |
| Fastening Type | Direct fastening |
| Alternator type | excl. vacuum pump |
| Distance from belt pulley to alternator [mm] | 29,3 mm |
| Rotation Direction | Clockwise rotation |
| Pulleys | with freewheel belt pulley |
| Number of grooves | 6 |
| Belt Pulley Ø [mm] | 56 mm |
| Length [mm] | 164 mm |
| Recommended additional repairs | V-Belt/V-Ribbed Belt |
| AUDI | 06H 903 016 L |
| VW | 06H 903 016 L |
| VW | 06H 903 016 LX |
| A4 (8K2, B8) 06/2008 - 12/2015 | ||||
| Motor codes | Engine type | HP | kW | Type |
| CABB, CDHB | Petrol | 160 | 118 | 1.8 TFSI |
| CABA, CDHA | Petrol | 120 | 88 | 1.8 TFSI |
| CAEA, CDNB, CFKA | Petrol | 180 | 132 | 2.0 TFSI |
| CAEB, CDNC | Petrol | 211 | 155 | 2.0 TFSI |
| CDNC, CPMA | Petrol | 211 | 155 | 2.0 TFSI quattro |
| CDHB | Petrol | 160 | 118 | 1.8 TFSI quattro |
| A4 Allroad (8KH, B8) 09/2009 - 05/2016 | ||||
| Motor codes | Engine type | HP | kW | Type |
| CDNC, CPMA | Petrol | 211 | 155 | 2.0 TFSI quattro |
| A4 Avant (8K5, B8) 06/2008 - 12/2015 | ||||
| Motor codes | Engine type | HP | kW | Type |
| CABB, CDHB | Petrol | 160 | 118 | 1.8 TFSI |
| CAEB, CDNC | Petrol | 211 | 155 | 2.0 TFSI |
| CDHA | Petrol | 120 | 88 | 1.8 TFSI |
| CDNB, CFKA | Petrol | 180 | 132 | 2.0 TFSI |
| CAEB, CDNC | Petrol | 211 | 155 | 2.0 TFSI quattro |
| CDHB | Petrol | 160 | 118 | 1.8 TFSI quattro |
| A5 (8T3) 02/2009 - | ||||
| Motor codes | Engine type | HP | kW | Type |
| CABD, CJEB | Petrol | 170 | 125 | 1.8 TFSI |
| CDNB | Petrol | 180 | 132 | 2.0 TFSI |
| CDNC | Petrol | 211 | 155 | 2.0 TFSI |
| CAEB, CDNC | Petrol | 211 | 155 | 2.0 TFSI quattro |
| CDHB | Petrol | 160 | 118 | 1.8 TFSI |
| A5 Convertible (8F7) 05/2009 - 03/2012 | ||||
| Motor codes | Engine type | HP | kW | Type |
| CAEA, CDNB | Petrol | 180 | 132 | 2.0 TFSI |
| CAEB, CDNC | Petrol | 211 | 155 | 2.0 TFSI |
| CAEB, CDNC, CPMA | Petrol | 211 | 155 | 2.0 TFSI quattro |
| CDHB | Petrol | 160 | 118 | 1.8 TFSI |
| A5 Sportback (8TA) 04/2010 - 04/2014 | ||||
| Motor codes | Engine type | HP | kW | Type |
| CJEB | Petrol | 170 | 125 | 1.8 TFSI |
| CDNB | Petrol | 180 | 132 | 2.0 TFSI |
| CAEB, CDNC | Petrol | 211 | 155 | 2.0 TFSI quattro |
| CDHB | Petrol | 160 | 118 | 1.8 TFSI |
| CDNC | Petrol | 211 | 155 | 2.0 TFSI |
| Q5 (8RB) 11/2010 - | ||||
| Motor codes | Engine type | HP | kW | Type |
| CAEB, CDNC, CPMA | Petrol | 211 | 155 | 2.0 TFSI quattro |
| CDNB, CNCB | Petrol | 180 | 132 | 2.0 TFSI quattro |
