Alternator, BOSCH 0 986 080 420
- Delivery from 19/09
- Article number: 0 986 080 420
- Supplier name: BOSCH
- Description: Alternator
273.06 EUR (incl. VAT)
| Voltage [V] | 14 V |
| Alternator Charge Current [A] | 150 A |
| Fastening Type | Double Pivot Lever |
| Alternator type | excl. vacuum pump |
| Distance from belt pulley to alternator [mm] | 32,5 mm |
| Rotation Direction | Clockwise rotation |
| Pulleys | with freewheel belt pulley |
| Number of grooves | 7 |
| Belt Pulley Ø [mm] | 48,5 mm |

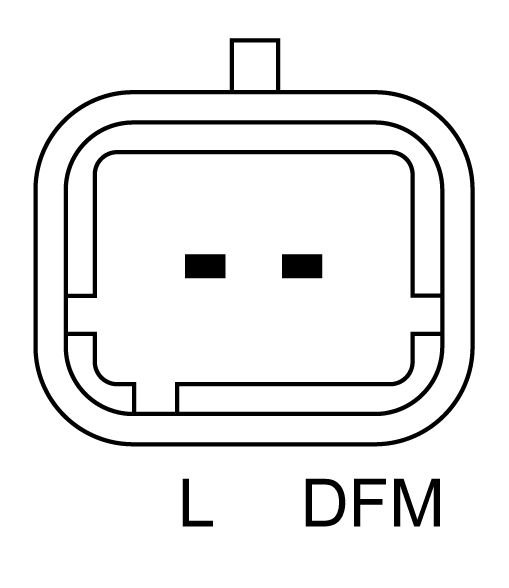

| Clamp | L |
| Clamp | DFM |
| Plug Type ID | PL72 |
| Length [mm] | 181 mm |
| Recommended additional repairs | V-Belt/V-Ribbed Belt |
| NISSAN | 23100 00Q0J |
| OPEL | 93161735 |
| RENAULT | 82 00 404 459 |
| VAUXHALL | 93161735 |
| PRIMASTAR Box (X83) 02/2003 - | ||||
| Motor codes | Engine type | HP | kW | Type |
| M9R 630, M9R 780 | Diesel | 114 | 84 | 2.0 dCi 115 |
| M9R 782 | Diesel | 90 | 66 | 2.0 dCi 90 |
| PRIMASTAR Bus (X83) 03/2001 - | ||||
| Motor codes | Engine type | HP | kW | Type |
| M9R 780 | Diesel | 114 | 84 | dCi 120 |
| M9R 782 | Diesel | 90 | 66 | dCi 90 |
| VIVARO A Box (X83) 08/2006 - | ||||
| Motor codes | Engine type | HP | kW | Type |
| M9R 630, M9R 780, M9R 782, M9R 786 | Diesel | 90 | 66 | 2.0 CDTI (F7) |
| M9R 630, M9R 692, M9R 780, M9R 784, M9R 786, M9R 788 | Diesel | 114 | 84 | 2.0 CDTI (F7) |
| VIVARO A Combi (X83) 08/2006 - | ||||
| Motor codes | Engine type | HP | kW | Type |
| M9R 780, M9R 782, M9R 786 | Diesel | 90 | 66 | 2.0 CDTI (F7, J7, A07) |
| M9R 630, M9R 692, M9R 780, M9R 784, M9R 786, M9R 788 | Diesel | 114 | 84 | 2.0 CDTI (F7, J7, A07) |
| VIVARO A Platform/Chassis (X83) 08/2006 - | ||||
| Motor codes | Engine type | HP | kW | Type |
| M9R 630, M9R 780, M9R 782, M9R 786 | Diesel | 90 | 66 | 2.0 CDTI |
| M9R 630, M9R 780 | Diesel | 114 | 84 | 2.0 CDTI |
| ESPACE IV (JK0/1_) 11/2002 - | ||||
| Motor codes | Engine type | HP | kW | Type |
| M9R 760, M9R 761, M9R 762, M9R 763, M9R 812, M9R 815, M9R 859 | Diesel | 173 | 127 | 2.0 dCi (JK03, JK04) |
| LAGUNA II (BG0/1_) 03/2001 - | ||||
| Motor codes | Engine type | HP | kW | Type |
| M9R 740 | Diesel | 150 | 110 | 2.0 dCi (BG1T) |
| M9R 760 | Diesel | 173 | 127 | 2.0 dCi (BG14, BG1S) |
| LAGUNA II Grandtour (KG0/1_) 03/2001 - | ||||
| Motor codes | Engine type | HP | kW | Type |
| M9R 740 | Diesel | 150 | 110 | 2.0 dCi (KG1T) |
| M9R 760 | Diesel | 173 | 127 | 2.0 dCi (KG1S) |
| TRAFIC II Box (FL) 08/2006 - | ||||
| Motor codes | Engine type | HP | kW | Type |
| M9R 630, M9R 780, M9R 782 | Diesel | 90 | 66 | 2.0 dCi 90 (FL0H) |
| M9R 692, M9R 780, M9R 782, M9R 786 | Diesel | 114 | 84 | 2.0 dCi 115 (FL01, FL0U) |
| TRAFIC II Bus (JL) 08/2006 - | ||||
| Motor codes | Engine type | HP | kW | Type |
| M9R 630, M9R 782 | Diesel | 90 | 66 | 2.0 dCi 90 (JL0H) |
| M9R 630, M9R 692, M9R 780, M9R 782, M9R 786 | Diesel | 114 | 84 | 2.0 dCi 115 (JL0H) |
| TRAFIC II Platform/Chassis (EL) 08/2006 - | ||||
| Motor codes | Engine type | HP | kW | Type |
| M9R 780, M9R 782 | Diesel | 90 | 66 | 2.0 dCi 90 (EL0H) |
| M9R 692, M9R 780, M9R 782, M9R 786 | Diesel | 114 | 84 | 2.0 dCi 115 (EL0H) |
| VEL SATIS (BJ0_) 06/2002 - | ||||
| Motor codes | Engine type | HP | kW | Type |
| M9R 760 | Diesel | 150 | 110 | 2.0 dCi (BJ03) |
| M9R 760, M9R 762, M9R 763 | Diesel | 173 | 127 | 2.0 dCi (BJ03, BJ0B) |
| VIVARO Box (X83) 08/2006 - 07/2014 | ||||
| Motor codes | Engine type | HP | kW | Type |
| M9R 630, M9R 692, M9R 780, M9R 788 | Diesel | 114 | 84 | 2.0 CDTI |
| M9R 630, M9R 780, M9R 782, M9R 786 | Diesel | 90 | 66 | 2.0 CDTI |
| VIVARO Combi (X83) 08/2006 - 07/2014 | ||||
| Motor codes | Engine type | HP | kW | Type |
| M9R 630, M9R 780, M9R 782, M9R 786 | Diesel | 90 | 66 | 2.0 CDTI |
| M9R 630, M9R 780, M9R 784, M9R 786, M9R 788 | Diesel | 114 | 84 | 2.0 CDTI |
| VIVARO Platform/Chassis (X83) 08/2006 - 07/2014 | ||||
| Motor codes | Engine type | HP | kW | Type |
| M9R 630, M9R 780, M9R 782, M9R 786 | Diesel | 90 | 66 | 2.0 CDTI |
| M9R 630, M9R 780, M9R 788 | Diesel | 114 | 84 | 2.0 CDTI |
