Alternator, BOSCH 0 986 080 190
- Delivery from 19/09
- Article number: 0 986 080 190
- Supplier name: BOSCH
- Description: Alternator
174.88 EUR (incl. VAT)

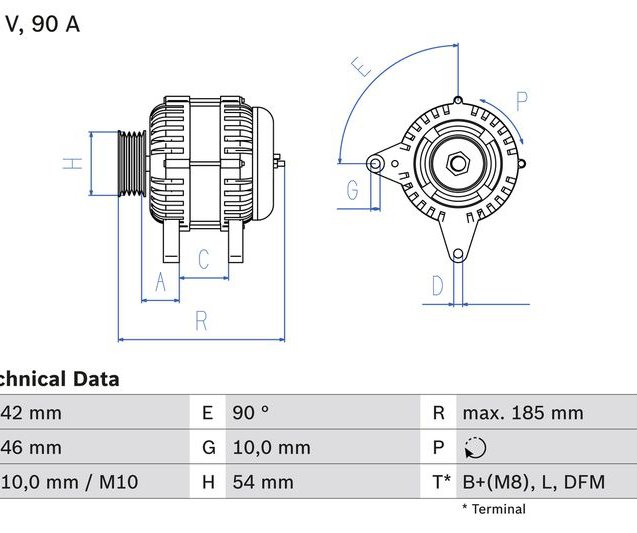

| Voltage [V] | 14 V |
| Alternator Charge Current [A] | 90 A |
| Fastening Type | Double Pivot Lever |
| Alternator type | excl. vacuum pump |
| Distance from belt pulley to alternator [mm] | 42 mm |
| Rotation Direction | Clockwise rotation |
| Pulleys | with freewheel belt pulley |
| Number of grooves | 6 |
| Belt Pulley Ø [mm] | 54 mm |
| Clamp | B1+(M8) |
| Clamp | L |
| Clamp | DFM |
| Plug Type ID | PL72 |
| Length [mm] | 185 mm |
| Recommended additional repairs | V-Belt/V-Ribbed Belt |
| CITROËN | 5702 G9 |
| CITROËN | 5702 H0 |
| CITROËN | 5705 CS |
| FIAT | K9649611280 |
| FIAT | K9655296080 |
| FIAT | 71786195 |
| FIAT | 9649611280 |
| FIAT | 9655296080 |
| PEUGEOT | 5702 G9 |
| PEUGEOT | 5702 H0 |
| PEUGEOT | 5705 CS |
| PEUGEOT | 5705 NA |
| PEUGEOT | 96 496 112 80 |
| PEUGEOT | 96 552 960 80 |
| PEUGEOT | 96 558 582 80 |
| BERLINGO (B9) 07/2010 - | ||||
| Motor codes | Engine type | HP | kW | Type |
| 9HT (DV6BTED4) | Diesel | 75 | 55 | 1.6 HDi 75 16V |
| 9HX (DV6ATED4) | Diesel | 90 | 66 | 1.6 HDi 90 |
| BERLINGO / BERLINGO FIRST Box (M_) 10/2000 - 03/2008 | ||||
| Motor codes | Engine type | HP | kW | Type |
| WJY (DW8B), WJZ (DW8) | Diesel | 69 | 51 | 1.9 D 70 (MBWJZ, MCWJZ) |
| WJY (DW8B), WJZ (DW8) | Diesel | 69 | 51 | 1.9 D 70 4WD (MBWJZ, MCWJZ) |
| BERLINGO / BERLINGO FIRST MPV (MF) 10/2000 - 12/2011 | ||||
| Motor codes | Engine type | HP | kW | Type |
| WJY (DW8B), WJZ (DW8) | Diesel | 70 | 51 | 1.9 D (MFWJZ) |
| WJY (DW8B), WJZ (DW8) | Diesel | 69 | 51 | 1.9 D 4WD (MFWJZ) |
| BERLINGO Box (B9) 07/2010 - | ||||
| Motor codes | Engine type | HP | kW | Type |
| 9HT (DV6BTED4), 9HT (DV6BUTED4) | Diesel | 75 | 55 | 1.6 HDi 75 |
| 9HS (DV6TED4BU), 9HX (DV6AUTED4) | Diesel | 90 | 66 | 1.6 HDi 90 16V |
| JUMPER Box (244) 04/2002 - | ||||
| Motor codes | Engine type | HP | kW | Type |
| RHV (DW10TD), RHV (DW10UTD) | Diesel | 84 | 62 | 2.0 HDi |
| 4HY (DW12UTED) | Diesel | 101 | 74 | 2.2 HDi |
| JUMPER Bus (244, Z_) 04/2002 - | ||||
| Motor codes | Engine type | HP | kW | Type |
| RHV (DW10UTD) | Diesel | 84 | 62 | 2.0 HDi |
| 4HY (DW12UTED) | Diesel | 101 | 74 | 2.2 HDi |
| JUMPER Platform/Chassis (244) 04/2002 - | ||||
| Motor codes | Engine type | HP | kW | Type |
| RHV (DW10UTD) | Diesel | 84 | 62 | 2.0 HDi |
| 4HY (DW12UTED) | Diesel | 101 | 74 | 2.2 HDi |
| JUMPY 01/2007 - | ||||
| Motor codes | Engine type | HP | kW | Type |
| 9HU (DV6UTED4) | Diesel | 90 | 66 | 1.6 HDi 90 16V |
| JUMPY Box 01/2007 - | ||||
| Motor codes | Engine type | HP | kW | Type |
| 9HU (DV6UTED4) | Diesel | 90 | 66 | 1.6 HDi 90 16V |
| 9HH (DV6DUM), 9HM (DV6UC) | Diesel | 90 | 66 | 1.6 HDi 90 8V |
| DUCATO Box (244_) 05/2002 - 07/2006 | ||||
| Motor codes | Engine type | HP | kW | Type |
| RHV (DW10) | Diesel | 84 | 62 | 2.0 JTD |
| DUCATO Bus (244_) 05/2002 - 07/2006 | ||||
| Motor codes | Engine type | HP | kW | Type |
| RHV (DW10) | Diesel | 84 | 62 | 2.0 JTD |
| DUCATO Platform/Chassis (244_) 10/2002 - 07/2006 | ||||
| Motor codes | Engine type | HP | kW | Type |
| RHV (DW10) | Diesel | 84 | 62 | 2.0 JTD |
| 207 (WA_, WC_) 06/2007 - | ||||
| Motor codes | Engine type | HP | kW | Type |
| 8HR (DV4C), 8HZ (DV4TD) | Diesel | 68 | 50 | 1.4 HDi |
| 207 Van 04/2007 - | ||||
| Motor codes | Engine type | HP | kW | Type |
| 8HZ (DV4TD) | Diesel | 68 | 50 | 1.4 HDi |
| BOXER Box (244) 04/2002 - | ||||
| Motor codes | Engine type | HP | kW | Type |
| RHV (DW10TD), RHV (DW10UTD) | Diesel | 84 | 62 | 2.0 HDi |
| 4HY (DW12UTED) | Diesel | 101 | 74 | 2.2 HDi |
| BOXER Bus (244, Z_) 04/2002 - | ||||
| Motor codes | Engine type | HP | kW | Type |
| RHV (DW10TD), RHV (DW10UTD) | Diesel | 84 | 62 | 2.0 HDi |
| 4HY (DW12UTED) | Diesel | 101 | 74 | 2.2 HDi |
| BOXER Platform/Chassis (244) 04/2002 - | ||||
| Motor codes | Engine type | HP | kW | Type |
| RHV (DW10TD), RHV (DW10UTD) | Diesel | 84 | 62 | 2.0 HDi |
| 4HY (DW12UTED) | Diesel | 101 | 74 | 2.2 HDi |
| EXPERT Box (VF3A_, VF3U_, VF3X_) 01/2007 - | ||||
| Motor codes | Engine type | HP | kW | Type |
| 9HU (DV6UTED4) | Diesel | 90 | 66 | 1.6 HDi 90 16V |
| EXPERT Platform/Chassis 01/2007 - | ||||
| Motor codes | Engine type | HP | kW | Type |
| 9HU (DV6UTED4) | Diesel | 90 | 66 | 1.6 HDi 90 16V |
| 9HH (DV6DUM), 9HM (DV6UC) | Diesel | 90 | 66 | 1.6 HDi 90 8V |
| EXPERT Tepee (VF3V_) 01/2007 - | ||||
| Motor codes | Engine type | HP | kW | Type |
| 9HU (DV6UTED4) | Diesel | 90 | 66 | 1.6 HDi 90 16V |
| PARTNER Box (5) 06/1996 - 09/2005 | ||||
| Motor codes | Engine type | HP | kW | Type |
| WJY (DW8B) | Diesel | 69 | 51 | 1.9 D 4x4 |
| WJY (DW8B), WJZ (DW8) | Diesel | 69 | 51 | 1.9 D |
| 9HX (DV6ATED4) | Diesel | 90 | 66 | 1.6 HDi 90 |
| PARTNER Box 11/2010 - | ||||
| Motor codes | Engine type | HP | kW | Type |
| 9HT (DV6BTED4), 9HW (DV6BTED4) | Diesel | 75 | 55 | 1.6 HDi |
| 9HS (DV6TED4BU), 9HX (DV6AUTED4) | Diesel | 90 | 66 | 1.6 HDi 16V |
| 9HS (DV6TED4BU), 9HX (DV6ATED4), 9HX (DV6AUTED4) | Diesel | 90 | 66 | 1.6 HDi 16V 4x4 |
| 9HJ (DV6DTEDM), 9HX (DV6ATED4) | Diesel | 92 | 68 | 1.6 HDi 16V |
| PARTNER Combispace (5F) 07/2001 - 03/2008 | ||||
| Motor codes | Engine type | HP | kW | Type |
| 9HX (DV6ATED4) | Diesel | 90 | 66 | 1.6 HDi 90 |
| WJY (DW8B) | Diesel | 69 | 51 | 1.9 D 4x4 |
| PARTNER ORIGIN Box Body/MPV (G_) 08/2008 - 12/2015 | ||||
| Motor codes | Engine type | HP | kW | Type |
| 9HX (DV6ATED4) | Diesel | 90 | 66 | 1.6 HDi 90 |
| PARTNER ORIGIN MPV (G_) 08/2008 - 12/2013 | ||||
| Motor codes | Engine type | HP | kW | Type |
| 9HW (DV6BTED4) | Diesel | 75 | 55 | 1.6 HDi 75 |
| PARTNER Platform/Chassis 01/1999 - 07/2008 | ||||
| Motor codes | Engine type | HP | kW | Type |
| WJY (DW8B), WJZ (DW8) | Diesel | 69 | 51 | 1.9 D |
| PARTNER Platform/Chassis 01/2009 - | ||||
| Motor codes | Engine type | HP | kW | Type |
| 9HT (DV6BTED4) | Diesel | 75 | 55 | 1.6 HDi |
| 9HS (DV6TED4BU), 9HX (DV6ATED4) | Diesel | 90 | 66 | 1.6 HDi 16V |
| PARTNER Tepee 08/2010 - | ||||
| Motor codes | Engine type | HP | kW | Type |
| 9HT (DV6BTED4) | Diesel | 75 | 55 | 1.6 HDi 75 (16V) |
