Alternator, BOSCH 0 986 047 910
- Delivery from 19/09
- Article number: 0 986 047 910
- Supplier name: BOSCH
- Description: Alternator
228.60 EUR (incl. VAT)

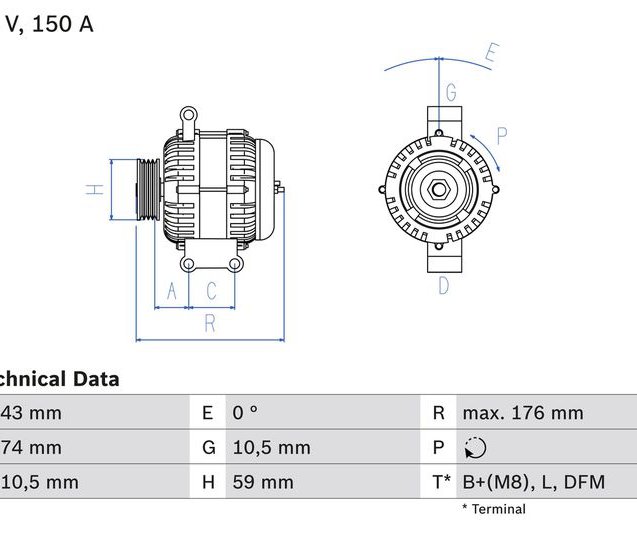

| Voltage [V] | 14 V |
| Alternator Charge Current [A] | 150 A |
| Fastening Type | Direct fastening |
| Alternator type | excl. vacuum pump |
| Distance from belt pulley to alternator [mm] | 43,3 mm |
| Rotation Direction | Clockwise rotation |
| Pulleys | with freewheel belt pulley |
| Number of grooves | 6 |
| Belt Pulley Ø [mm] | 59 mm |
| Clamp | B2+(M8) |
| Clamp | L |
| Clamp | DFM |

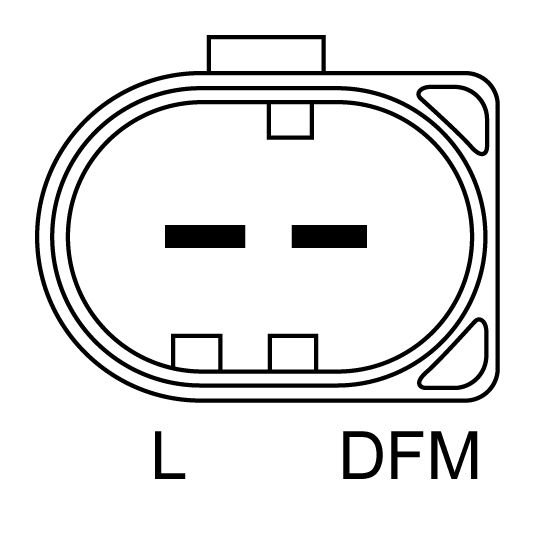

| Plug Type ID | PL61 |
| Length [mm] | 176 mm |
| Recommended additional repairs | V-Belt/V-Ribbed Belt |
| CITROËN | 5705 EA |
| CITROËN | 96 761 435 80 |
| FIAT | K9658144680 |
| FIAT | K9659918080 |
| FIAT | 9658 144 680 |
| FIAT | 9659 918 080 |
| FIAT | 967614358 |
| FORD | AC1T 10300 BA |
| FORD | AC1T 10300 BB |
| FORD | 1404791 |
| FORD | 1572736 |
| FORD | 1581843 |
| FORD | 1712779 |
| FORD | 1747021 |
| FORD | 2073237 |
| FORD | 6C1T 10300 BD |
| FORD | 6C1T1 0300 BA |
| FORD | 6C1T1 0300 BB |
| FORD | 6C1T1 0300 BC |
| PEUGEOT | 5705 EA |
| PEUGEOT | 96 761 435 80 |
| JUMPER Box 07/2011 - | ||||
| Motor codes | Engine type | HP | kW | Type |
| 4HV (P22DTE) | Diesel | 101 | 74 | 2.2 HDi 100 |
| 4HU (P22DTE) | Diesel | 120 | 88 | 2.2 HDi 120 |
| JUMPER Bus 07/2011 - | ||||
| Motor codes | Engine type | HP | kW | Type |
| 4HV (P22DTE) | Diesel | 101 | 74 | 2.2 HDi 100 |
| 4HU (P22DTE) | Diesel | 120 | 88 | 2.2 HDi 120 |
| JUMPER Platform/Chassis 07/2011 - | ||||
| Motor codes | Engine type | HP | kW | Type |
| 4HV (P22DTE) | Diesel | 101 | 74 | 2.2 HDi 100 |
| 4HU (P22DTE) | Diesel | 120 | 88 | 2.2 HDi 120 |
| DUCATO Box (250_, 290_) 07/2006 - | ||||
| Motor codes | Engine type | HP | kW | Type |
| 4HV (P22DTE) | Diesel | 100 | 74 | 100 Multijet 2,2 D |
| DUCATO Bus (250_, 290_) 07/2006 - | ||||
| Motor codes | Engine type | HP | kW | Type |
| 4HV (P22DTE) | Diesel | 100 | 74 | 100 Multijet 2,2 D |
| DUCATO Platform/Chassis (250_, 290_) 07/2006 - | ||||
| Motor codes | Engine type | HP | kW | Type |
| 4HV (P22DTE) | Diesel | 100 | 74 | 100 Multijet 2,2 D |
| TRANSIT Box (FA_ _) 10/2011 - 08/2014 | ||||
| Motor codes | Engine type | HP | kW | Type |
| QVFA | Diesel | 110 | 81 | 2.2 TDCi |
| QWFA | Diesel | 130 | 96 | 2.2 TDCi |
| P8FA, P8FB | Diesel | 85 | 63 | 2.2 TDCi |
| PGFA, PGFB, UHFA, UHFB, UHFC | Diesel | 140 | 103 | 2.2 TDCi |
| SRFA, SRFB, SRFC, SRFD, SRFE | Diesel | 115 | 85 | 2.2 TDCi |
| TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) 10/2011 - 08/2014 | ||||
| Motor codes | Engine type | HP | kW | Type |
| P8FA, P8FB | Diesel | 85 | 63 | 2.2 TDCi |
| QVFA | Diesel | 110 | 81 | 2.2 TDCi |
| QWFA | Diesel | 130 | 96 | 2.2 TDCi |
| PGFA, PGFB, UHFA, UHFB, UHFC | Diesel | 140 | 103 | 2.2 TDCi |
| SRFA, SRFB, SRFC, SRFD, SRFE | Diesel | 115 | 85 | 2.2 TDCi |
| TRANSIT Platform/Chassis (FM_ _, FN_ _) 10/2011 - 08/2014 | ||||
| Motor codes | Engine type | HP | kW | Type |
| QVFA | Diesel | 110 | 81 | 2.2 TDCi |
| P8FA, P8FB | Diesel | 85 | 63 | 2.2 TDCi |
| QWFA | Diesel | 130 | 96 | 2.2 TDCi |
| PGFA, PGFB, UHFA, UHFB, UHFC | Diesel | 140 | 103 | 2.2 TDCi |
| SRFA, SRFB, SRFC, SRFD, SRFE | Diesel | 115 | 85 | 2.2 TDCi |
| TRANSIT TOURNEO 10/2007 - 08/2014 | ||||
| Motor codes | Engine type | HP | kW | Type |
| QVFA | Diesel | 110 | 81 | 2.2 TDCi |
| QWFA | Diesel | 131 | 96 | 2.2 TDCi |
| PGFA, PGFB, UHFA, UHFB, UHFC | Diesel | 140 | 103 | 2.2 TDCi |
| SRFA, SRFB, SRFC, SRFD, SRFE | Diesel | 115 | 85 | 2.2 TDCi |
| BOXER Box 03/2011 - | ||||
| Motor codes | Engine type | HP | kW | Type |
| 4HV (P22DTE) | Diesel | 101 | 74 | 2.2 HDi 100 |
| 4HU (P22DTE) | Diesel | 120 | 88 | 2.2 HDi 120 |
| BOXER Bus 03/2011 - | ||||
| Motor codes | Engine type | HP | kW | Type |
| 4HV (P22DTE) | Diesel | 101 | 74 | 2.2 HDi 100 |
| 4HU (P22DTE) | Diesel | 120 | 88 | 2.2 HDi 120 |
| BOXER Platform/Chassis 03/2011 - | ||||
| Motor codes | Engine type | HP | kW | Type |
| 4HV (P22DTE) | Diesel | 101 | 74 | 2.2 HDi 100 |
| 4HU (P22DTE) | Diesel | 120 | 88 | 2.2 HDi 120 |
